Ring Terminal, 1/4 in Stud Size, 6 AWG, 1,000 V, Bare Insulated, Bare, Crimp Termination Only
Mfr # M6-14R/SX
Zoro # G2499043
product price:Â
$
33.19
/pk 10, $3.32/ea
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Bare
Maximum Wire Size
6 AWG
Minimum Wire Size
6 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- M6-14R/SX
- Zoro #
- G2499043
- UPC #
- 10051128586980
- Country of Origin
- United States

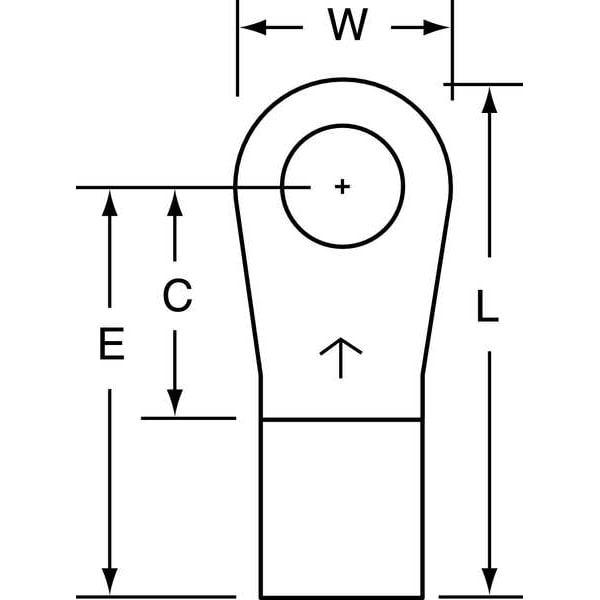

Dimensions
- Maximum Wire Size
- 6 AWG
- Minimum Wire Size
- 6 AWG
- Stud Size
- 1/4 in
- Overall Length
- 1.42 in
- Tongue Width - Wire Connector
- 0.47 in
- Barrel Inside Dia.
- 0.25 in
- Tongue Width
- 0.47 in
- Tongue Thickness
- 0.05 in
- Barrel Length
- 0.39 in
- Tongue Length
- 1.03 in
- Wire Rope Length
- 1.42 in
- Barrel Inside Diameter
- 0.25 in
- Length
- 1.42 in
Description
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 347 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.25 in, Barrel Length 0.39 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs, Hole Spacing 0.52 in
