Ring Terminal, #4 Stud Size, 10 AWG, 1,000 V, Nylon Insulated, Yellow, Crimp Termination Only
Mfr # MNG10-4R/SK
Zoro # G5523262
product price: $369.99
/pk 500, $0.74/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Minimum Wire Size
12 AWG
Insulation Coverage
Partial Coverage
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG10-4R/SK
Zoro #
G5523262
UPC #
00054007019329
Country of Origin
United States

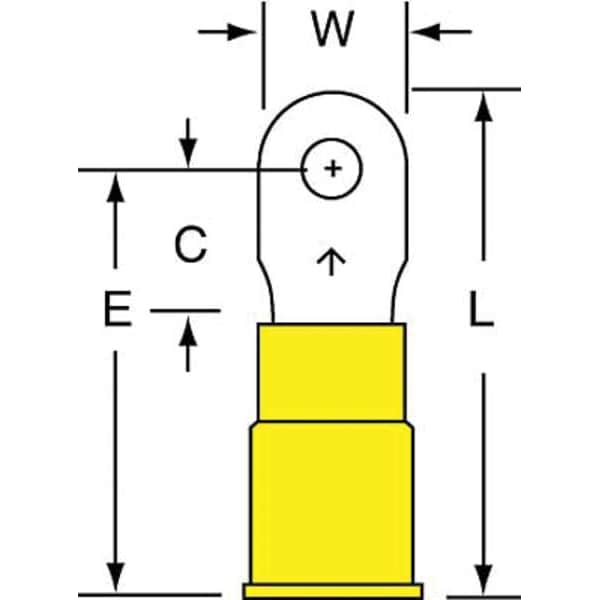

Dimensions
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
#4
Tongue Width - Wire Connector
0.28 in
Overall Length
0.98 in
Barrel Inside Dia.
0.14 in
Tongue Thickness
0.04 in
Barrel Length
0.25 in
Tongue Length
0.73 in
Tongue Width
0.28 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.28 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.14 in, Barrel Length 0.25 in, Barrel Style Butted
