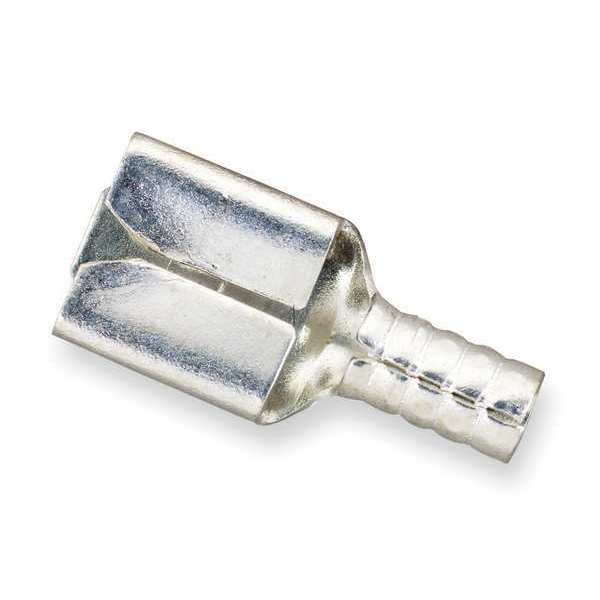

Scotchlok Female Disconnect, Bare, 16-14AWG, PK100

  • Mfr # MU14-250DFX
  • Zoro # G0284715
product price:
$
82.99
/pk of 100, $0.83/ea

Key Features

Insulation
None
Insulation Color
Bare
Connection Type
Crimp
Insulation Type
Bare
Wire Range
16 to 14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MU14-250DFX
Zoro #
G0284715
UPC #
00051128587089
Country of Origin
United States
Item
Female Disconnect
Insulation
None
Insulation Color
Bare
Connection Type
Crimp
Insulation Type
Bare
Wire Range
16 to 14 AWG
Seam
Butted
Max. Temp.
347 Degrees F
Max. Voltage
600V
Standards
CSA Certified, RoHS Compliant, UL Listed
Connection Material
Brass
Terminal Type
Female Disconnect
Disconnect Type
Female
Fastener Orientation
Female
Solution for
Wireless Network Infrastructure Accessories
Insulation Material
Non-insulated
Terminal Style
Standard

Dimensions

Overall Length
0.66 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.08 in
Barrel Inside Diameter
0.080 in
Minimum Conductor Size
16 AWG
Pad Width
0.25 in
Mates with Female Width
0.250 in
Tab Width
0.25 in
Maximum Conductor Size
14 AWG
Mates with Male Tab Width (W')
0.250 in
Connection Width
0.25 in
Wire Rope Length
0.66 in
Length
0.66 in

Description

Female Disconnect, Insulation Color Bare, Terminal Type Female Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Bare, Overall Length 0.66 in, Package Quantity 100
