Shop 3M

Scotchlok Female Disconnect, Blue, 16-14AWG, PK100

  • Mfr # MVU14-250DFX

  • Zoro # G3364882

product price:  $131.99
/pk 100, $1.32/ea
Free Shipping & Returns

Key Features

Insulation
Partial
Material
ETP Copper
Insulation Color
Blue
Insulation Type
Vinyl
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MVU14-250DFX
Zoro #
G3364882
UPC #
00051128586716
Country of Origin
United States

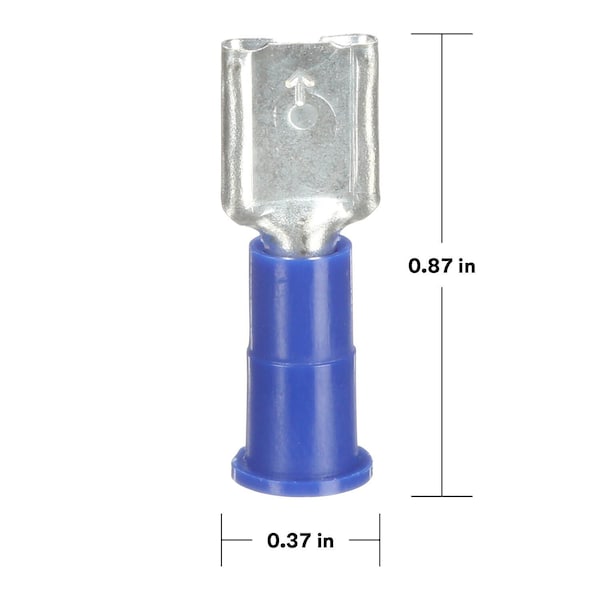

Dimensions

Overall Length
0.87 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.08 in
Overall Width
0.37 in
Tab Width
0.25 in
Maximum Wire Size
14 AWG
Tab Thickness
0.032 in
Barrel Inside Diameter
0.08 in
Minimum Wire Size
16 AWG
Overall Diameter
0.23 in
Maximum Insulation Outer Diameter
0.145 in
Barrel Length
0.25 in
Pad Width
0.25 in
Mates with Male Tab Width (W')
0.25 in
Diameter (D)
0.23 in
Maximum Insulation Outside Diameter
0.145 in
Minimum Conductor Size
14 AWG
Maximum Conductor Size
16 AWG
Connection Width
0.25 in
Mates with Female Width
0.250 in
Barrel Outside Diameter
0.23 in
Wire Rope Length
0.87 in

Details

Item
Wire Disconnect
Insulation
Partial
Material
ETP Copper
Insulation Color
Blue
Insulation Type
Vinyl
Connection Type
Crimp
Wire Range
16 to 14 AWG
Seam
Butted
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Connection Material
Tin-Plated Copper
Standards
CSA Certified, UL Listed
Terminal Type
Socket
Maximum Voltage
600 V
Minimum Operating Temperature
221 Degrees F
Termination Style
Crimp
Insulation Coverage
Partial Coverage
Seam Style
Butted
Contact Material
Brass
Connector / Connector Tool
Connector
Solution for
Wireless Network Infrastructure Accessories
Maximum Operating Temperature (Celsius)
105°C
Fastener Orientation
Female
Connector Style
Insulation Displacement
Terminal Style
Standard
Disconnect Type
Female
RoHS Compliant
Yes
Insulation Material
Vinyl
Contact Finish
Tin
Special Features
Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force
Disconnect Style
Quick Disconnect

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed
