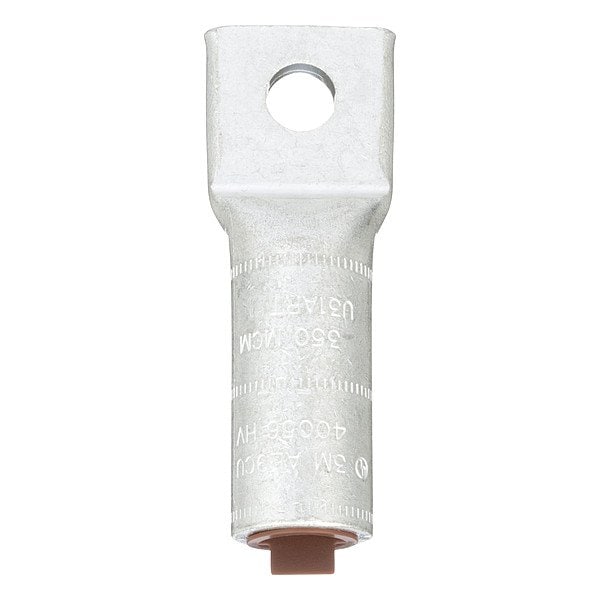

ScotchlokAluminum One Hole Lug 40056
Mfr # 13558
Zoro # G622588679
product price:Â
$
47.15
/ea
Key Features
Contact Finish
Tin
Die Code
10
Standards
RoHS 2011/65/EU
Barrel Inside Diameter
18.3 mm
Termination Style
Compression Lugs
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 13558
- Zoro #
- G622588679
- UPC #
- 00054007135586
- Country of Origin
- United States
Dimensions
- Barrel Inside Diameter
- 18.3 mm
- Barrel Size
- Standard
- Barrel Outside Diameter
- 1.11 in
- For Stranded Aluminum Wire Size - Maximum
- 350 kcmil
- For Stranded Copper Wire Size - Maximum
- 350 kcmil
- Overall Length
- 4.25 in
- Tongue Width
- 1.49 in
- For Stud Size
- 1/2 in
- Wire Rope Length
- 4.25 in
- Length
- 4.25 in
Details
- Contact Finish
- Tin
- Die Code
- 10
- Standards
- RoHS 2011/65/EU
- Item
- Compression Lug
- Termination Style
- Compression Lugs
- Material
- Aluminum
- For Conductor Material
- Aluminum, Copper
- Maximum Voltage
- 35 kV
- Color Code
- Brown
- For Wire Type
- Stranded
- Special Features
- Color Coded Barrel Sealing Caps
- Inspection Hole
- Yes
- Hole Center to End
- 0.62 in
Description
ScotchlokAluminum One Hole Lug 40056
