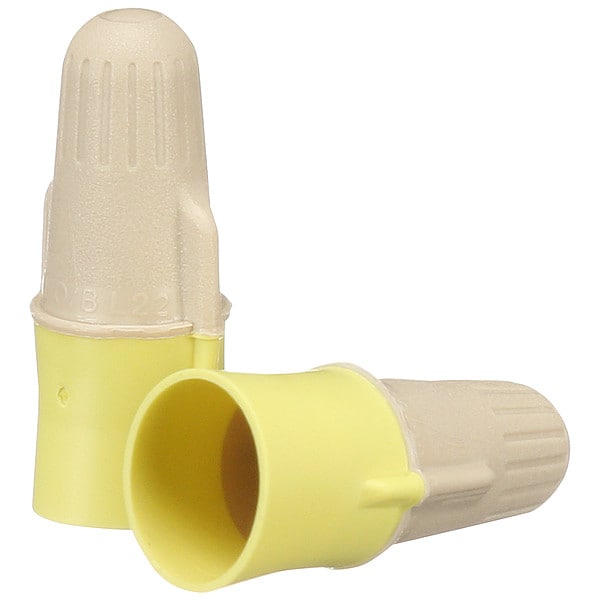

Twist-On Wire Connector, 12 AWG Max, Tan, Yellow, Plastic Insulation, 600 V, 500 PK

  • Mfr # T/Y+Jug

  • Zoro # G2022666


product price: $69.89
/pk 500, $0.14/ea

Key Features

Type
Twist-On
Color
Tan, Yellow
Insulation Material
Plastic
Maximum Voltage
600 V
Minimum Wire Combination
(2) 22 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T/Y+Jug
Zoro #
G2022666
UPC #
10051128552190
Country of Origin
United States

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
22 AWG
Height
0.76 in
Width
0.49 in
Overall Width
0.49 in
Strip Length
5/8 in

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Tan, Yellow
Insulation Material
Plastic
Maximum Voltage
600 V
Minimum Wire Combination
(2) 22 AWG
Maximum Wire Combination
(3) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CSA Certified, UL Listed
Series
Performance Plus
Application
Wide Range
Special Features
Dual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection
Maximum Conductors
6
For Conductor Material
Copper
Material
Steel
Termination Style
Twist-On

Description

Twist On Wire Connector, Color Tan/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination (3) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Plastic, Maximum Single Wire Size 12 AWG, Minimum Single Wire Size 22 AWG, Overall Height 1.03 in, Overall Width 0.49 in
