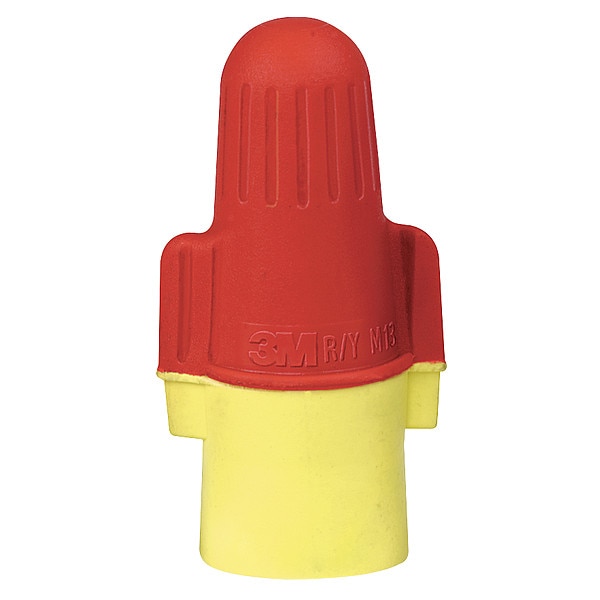

Twist-On Wire Connector, 8 AWG Max, Red, Yellow, Polypropylene, Thermoplastic Elastomer Insulation
Mfr # R/Y+BOX
Zoro # G1869086
product price: $25.59
/pk 100, $0.26/eaKey Features
Type
Twist-On
Color
Red, Yellow
Maximum Wire Size
8 AWG
Minimum Wire Size
8 AWG
Insulation Material
Polypropylene, Thermoplastic Elastomer
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
R/Y+BOX
Zoro #
G1869086
UPC #
10054007431548
Country of Origin
United States
Dimensions
Maximum Wire Size
8 AWG
Minimum Wire Size
8 AWG
Width
0.76 in
Height
0.76 in
Overall Width
0.76 in
Details
Item
Twist-On Wire Connector
Type
Twist-On
Color
Red, Yellow
Insulation Material
Polypropylene, Thermoplastic Elastomer
Maximum Voltage
600 V
Minimum Wire Combination
(5) 12 AWG
Maximum Wire Combination
(2) 8 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
No
Standards
CE Certified, CSA Certified, UL Listed
Series
Performance Plus
Application
Wide Range
For Conductor Material
Copper
Special Features
Flexible Skirt, New Internal Design, Wide Wire Ranges, Wires Feed Deeper
Termination Style
Twist-On
Description
Twist On Wire Connector, Color Red/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (5) 12 AWG, Maximum Wire Combination (2) 8 AWG, UL 94 Flammability Rating V-2, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Polypropylene/Thermoplastic Elastomer, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 8 AWG, Overall Height 0.76 in, Overall Width 0.76 in, RoHS Compliant No
