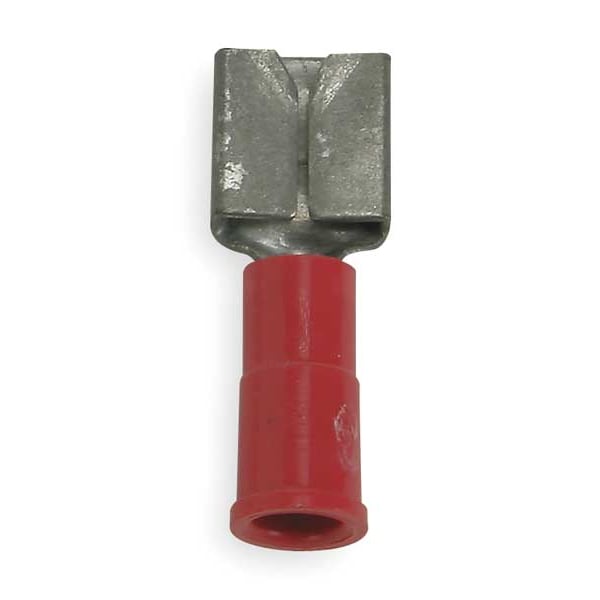

WireDisconnect, Copper, Red, Vinyl, PK100

  • Mfr # MVU18-250DFX
  • Zoro # G0743224
product price:
$
108.99
/pk of 100, $1.09/ea
Free Shipping & Returns

Key Features

Insulation
Partial
Material
ETP Copper
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Vinyl
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MVU18-250DFX
Zoro #
G0743224
UPC #
00051128587904
Country of Origin
United States

Dimensions

Overall Length
0.87 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.08 in
Mates with Male Tab Width (W')
0.25 in
Barrel Length
0.25 in
Maximum Conductor Size
22 AWG
Connection Width
0.25 in
Maximum Insulation Outside Diameter
0.145 in
Minimum Conductor Size
18 AWG
Overall Width
0.37 in
Tab Width
0.187 in
Barrel Inside Diameter
0.08 in
Mates with Female Width
0.250 in
Overall Diameter
0.23 in
Diameter (D)
0.23 in
Pad Width
0.25 in
Maximum Insulation Outer Diameter
0.145 in
Tab Thickness
0.032 in
Barrel Size
Standard
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG
Wire Rope Length
0.87 in
Length
0.87 in

Details

Item
Wire Disconnect
Insulation
Partial
Material
ETP Copper
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Vinyl
Wire Range
22 to 18 AWG
Seam
Butted
Max. Voltage
600V
Max. Temp.
221 Degrees F
Standards
UL Listed
Connection Material
Tin-Plated Copper
Terminal Type
Socket
Solution for
Wireless Network Infrastructure Accessories
Fastener Orientation
Female
Connector Style
Insulation Displacement
Terminal Style
Standard
Disconnect Type
Female
Connector / Connector Tool
Connector
Maximum Operating Temperature (Celsius)
105°C
Special Features
Superior Holding Force While Allowing for Quick and Easy Disconnect
Contact Finish
Tin
Disconnect Style
Quick Disconnect
Insulation Material
Vinyl
Contact Material
Copper
Insulation Coverage
Partial Coverage
Maximum Voltage
600 V
Seam Style
Butted

Description

Female Disconnect, Insulation Color Red, Terminal Type Female Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Vinyl, Overall Length 0.87 in, Package Quantity 100
