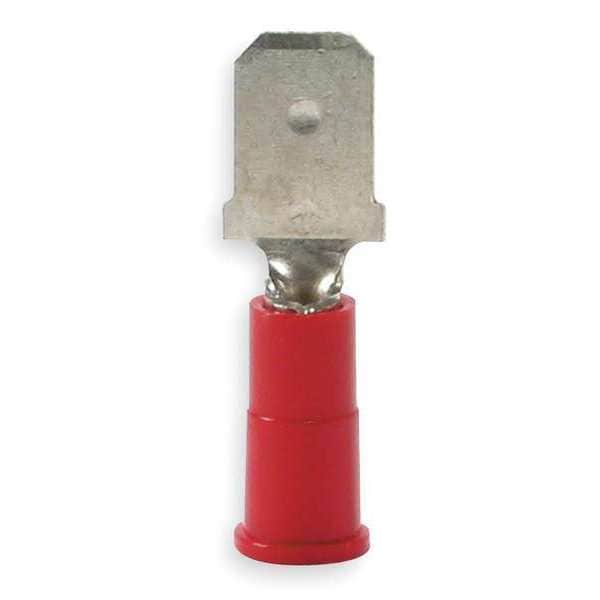

WireDisconnect, Copper, Red, Vinyl, PK100
Mfr # MVU18-250DMX
Zoro # G3402436
product price:Â
$
110.99
/pk of 100, $1.11/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Material
Plastic
Insulation Color
Red
Insulation Type
Vinyl
Connection Type
Crimp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MVU18-250DMX
- Zoro #
- G3402436
- UPC #
- 00051128587829
- Country of Origin
- United States
Dimensions
- Tab Size
- 0.032 in x 0.250 in
- Overall Length
- 0.93 in
- Barrel Inside Dia.
- 0.065 in
- Maximum Conductor Size
- 18 AWG
- Overall Diameter
- 0.39 in
- Maximum Insulation Outer Diameter
- 0.145 in
- Male Tab Width (W')
- 0.250 in
- Minimum Conductor Size
- 22 AWG
- Tab Width
- 0.25 in
- Pad Width
- 0.25 in
- Connection Width
- 0.25 in
- Barrel Inside Diameter
- 0.065 in
- Diameter (D)
- 0.39 in
- Minimum Wire Size
- 22 AWG
- Tab Thickness
- 0.032 in
- Maximum Wire Size
- 18 AWG
- Wire Rope Length
- 0.93 in
- Length
- 0.93 in
Description
Male Disconnect, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Male Disconnect, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, RoHS Compliant, UL Listed, Barrel Inside Diameter 0.065 in, Overall Length 0.93 in, Package Quantity 100
