80/20

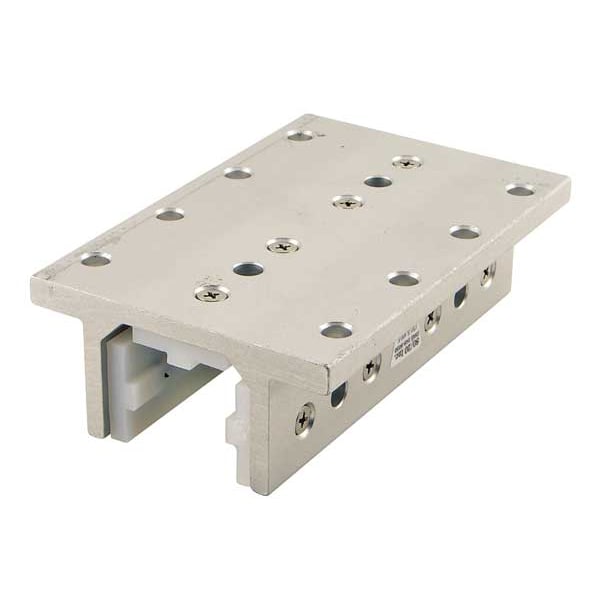

Linear Bearing, 4.000 In W, 6.000 In L
- Zoro #: G1984972
- Mfr #: 6526
Tap to zoom
Hover or click to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $113.81
80/20 #6526 Specifications
- Zoro #: G1984972
- Mfr #: 6526
- Item: Linear Bearing
- Bore Dia. (In.): -
- Flange Dia. (In.): -
- Flange Dia. (mm): -
- Material: UHMWPE
- Slot Width (mm): -
- Seal: -
- Dimension A2 (In.): -
- Dimension V (In.): -
- Flange Thickness (mm): -
- Overall Height (In.): 1.875 in
- Dimension M (In.): 1.5 in
- Width: 4.0
- Dimension H (In.): 0.75 in
- Slot Angle (Degrees): -
- Overall Length (In.): 6 in
- Dimension B: -
- Dimension H1 (In.): -
- Dynamic Load Capacity (N): -
- Mounting Bolt (In.): 5/16-18
- Dimension D: -
- Overall Width (mm): -
- Dimension N3: -
- Dimension Y: -
- Finish: Clear Anodize
- Dimension J: -
- Overall Width (In.): 4 in
- Dimension G1: -
- Dimension K: 1.25 in
- Bore Dia. (mm): -
- Dimension A2: -
- Barrel Dia. (mm): -
- Dimension R: -
- Dimension V: -
- Bolt Size: 5/16-18
- Flange Thickness (In.): 0.375 in
- Dimension S: -
- Dimension Dp: -
- Mounting Hole (In.): 0.328 in
- Shaft Dia. (In.): -
- Dimension L (In.): 1.875 in
- Body Width (In.): 4 in
- Static Load Capacity (Lb.): -
- Mounting Hole Dia. (In.): 0.328 in
- Dimension S (In.): -
- Dimension C (In.): 2.5 in
- Dimension C: -
- Dimension E1 (In.): -
- Dimension P: 0.75 in
- Mounting Hole Center (In.): 1.5 in
- Dimension N: -
- Accelerated Speed: -
- Liner: -
- Self-Alignment: -
- Dimension D (In.): 0.64 in
- Dimension Z: -
- Dimension I: -
- Temp. Range (F): -
- Type: Double Flange
- Dimension A1: -
- Dimension E: -
- Dimension d: -
- Dimension X: -
- Dimension A1 (In.): -
- Dimension A: -
- For Use With: 15 Series
- Dynamic Load Capacity (Lb.): -
- Dimension F: -
- Dimension N2 (In.): -
- Dimension H1: -
- Agency Compliance: -
- Dimension G1 (In.): -
- Steady State Speed - Intermittent Dry: -
- Dimension E (In.): 1.235 in
- Dimension F1 (In.): -
- Dimension H: -
- Dimension F1: -
- Dimension B (In.): 0.5 in
- Steady State Speed - Continuous Dry: -
- Dimension A (In.): 1.5 in
- Mounting Hole Dia. (mm): -
- Mounting Surface to Shaft Center (mm): -
- Bearing Type: UHMW PAD
- Barrel Dia. (In.): -
- Overall Height (mm): -
- Mounting Hole Center (mm): -
- Slot Width (In.): 0.32 in
- Lubrication: Dry
- Includes: -
- Dimension G: -
- Color: Silver
- Dimension F (In.): 0.375 in
- Dimension N Dia. (In.): -
- Retaining Ring: -
- Dimension G (In.): 4 in
- Body Width (mm): -
- Dimension O: -
- Dimension N2: -
- Static Load Capacity (N): -
- Overall Length (mm): -
- Dimension E2: -
- Height: 1.875
- Max. Pv: -
- Mounting Surface to Shaft Center (In.): -
- Dimension E1: -
- Steady State Speed: -
- Locking Type: Optional
- Pad Material: UHMW Plastic
- Compatible Brand and Series: 15 Series
- Product Type: Linear Bearing
- Compatible Product Type: 15 Series
- System of Measurement: Inch
- Flange Thickness: 3/8 in
- Housing Material: Aluminum
- Overall LxW: 6 in x 4 in
- Overall Length: 6 in
- Bearing Profile: Double Flanged
- Pad Type: Standard
- For Number of Slots: 3
- Overall Height: 1 7/8 in
- Overall Width: 4 in
- Overall LxWxH: 6 in x 4 in x 1 7/8 in
- Mounting Hole Diameter: 21/64 in
- Series: 15 Series
- Country of Origin (subject to change): United States
Description
Linear Bearing, Double Flange, Overall Width 4.000 In, Overall Length 6.000 In, Overall Height 1.875 In, Body Width 4.000 In, Flange Thickness 0.375 In, Mounting Hole Center 1.500 In, Mounting Hole Dia 0.328 In, 5/16-18 Bolt Size, Slot Width 0.320 In, Height 1.875, Mounting Bolt (In.) 5/16-18, Mounting Hole (In.) 0.328, Width 4.000, For Use With 15 Series
