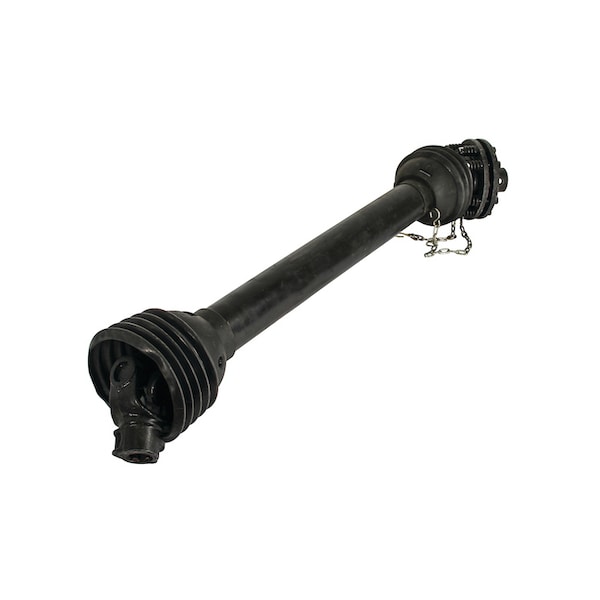

Driveline; W/ 7" Friction Clutch 46" x6.5" x6.5"

Driveline; W/ 7" Friction Clutch, C to C Max: 1310 mm/ 52", C to C Min: 885 mm/ 35", Category: 4 (47HP), Clutch Diameter: 7.09", Implement: 1 3/8" R.B. w/ FF1 FR.CL. w/.5" Pin Hole, Notes: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient, Notes: overlap of the drive tubes exists in all working positions without the possibility of bottoming out., Series: 100, Size: 5, Total Collapsed Length: 1140 mm/ 45", Tractor: 1 3/8" -6, Web Notes: ), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Tractor end is a 1-, Web Notes: 3/8" 6 spline yoke. Implement end is 1-3/8" round bore FF1 friction clutch with a 1/2" pin hole., Web Notes: Driveline is rated as a category 4 (47 hp). Fits Bondioli & Pavesi 100 Series., Web Notes: New 100 Series Driveline with friction clutch, size 5. Driveline minimum C-to-C length: 35" (885 mm
