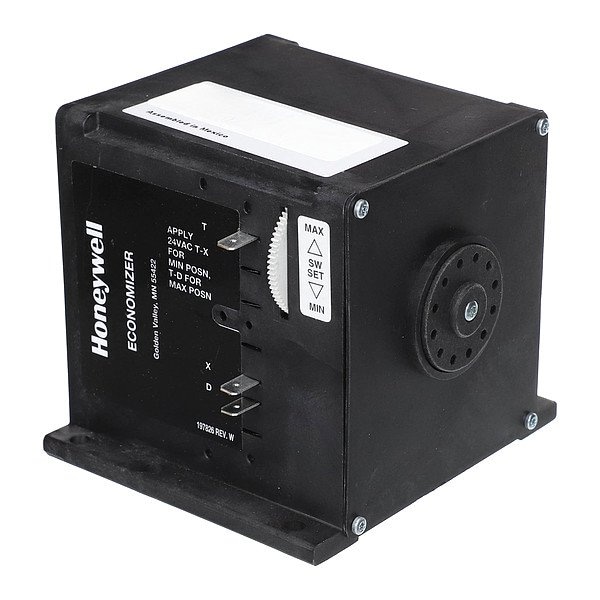

Damper Actuator, 24V, Foot Mount

  • Mfr # P82300

  • Zoro # G822588110

product price:
$
697.99
/ea
Free Shipping & Returns

Key Features

Rated Torque
25 in-lb
Maximum Operating Temperature
125 Degrees F
Power Rating
5W
Input Voltage
24V
Spring Return
Spring Return
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P82300
Zoro #
G822588110
UPC #
-
Country of Origin
Mexico
Rated Torque
25 in-lb
Maximum Operating Temperature
125 Degrees F
Power Rating
5W
Input Voltage
24V
Spring Return
Spring Return
Time to Close
18 sec
Shaft Type
Self-Centering
Signal Type
Floating Point
For Use With Building Automation Systems
Not Building Automation System Compatible
Application
Dampers
Plenum Rating
Not Plenum Rated
Time to Open
90 sec
Stroke Degree
90 Degrees
Shaft Rotation
CCW
Electrical Connection Type
Quick Connect Terminals
Item
Damper Actuator
Product Type
Damper Actuator
Fire Application Rating
Not Fire Application Rated
Smoke Application Rating
Not Smoke Application Rated
Number of Auxiliary Switches
0
Output Signal
0 to 10V DC
Valve Application
Damper
Minimum Operating Temperature
0 Degrees F

Description

Damper Actuator, Valve Application Damper, Signal Type Floating Point, Rated Torque 25 in-lb, Input Voltage 24V, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Quick Connect Terminals, For Use With Building Automation Systems Not Building Automation System Compatible, NEMA Rating Not Applicable, IP Rating Not Applicable, Spring Return Spring Return, Smoke Application Rating Not Smoke Application Rated, Fire Application Rating Not Fire Application Rated
