1NO, 24V-60V AC/DC, 3 P, Screw

  • Mfr # AF16-30-10-41
  • Zoro # G9282389
product price:
$
153.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V AC to 60V AC, 24V DC to 60V DC
Number of Poles
3
Terminal Connection Type
Screw
Number of Auxillary Contacts
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF16-30-10-41
Zoro #
G9282389
UPC #
88861413331
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Depth
77 mm
Overall Width
45 mm
Overall Height
86 mm

Details

Auxiliary Contact Form
1NO
Coil Voltage
24V AC to 60V AC, 24V DC to 60V DC
Number of Poles
3
Terminal Connection Type
Screw
Number of Auxillary Contacts
1
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Max. Operating Watts
7.5 kW (at 400V), 9 kW (at 415V, 440V, 500V, 690V), 7.5 kW (at 380/400V), 4 kW (at 220/230/240V)
Rated Short-Time Withstand Current
150 A (at 40 Degrees C for 10 s), 35 A (at 40 Degrees C for 15 min), 60 A (at 40 Degrees C for 1 min), 300 A (at 40 Degrees C for 1 s), 80 A (at 40 Degrees C for 30 s)
Rated Insulation Volts
600V, 690V
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
6 kV
Net Weight
0.27 kg
IP Rating
IP20, IP40
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Single Phase - 120V AC
1 1/2 hp
Maximum Voltage Rating
690V
Frequency
50/60 Hz
Conventional Free Air Thermal Current
16/35 A (at 40°C)
Full Load Amps-Inductive
18 A
Item
Contactor
Full Load Amps-Resistive
30 A
Reversing Capability
Non-Reversing

Description

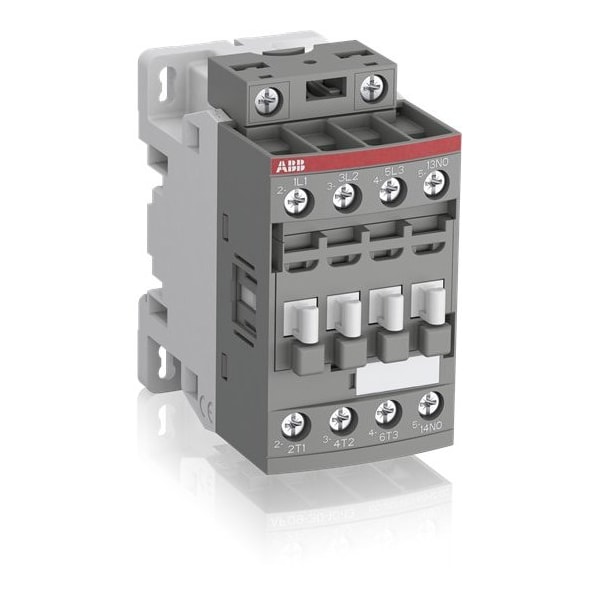

The ABB - 1NO, 24V-60V AC/DC, 3 P, Screw is an IEC Magnetic Contactor intended for use in industrial and commercial settings. It features a coil voltage of 24V-60V AC/DC and has screw terminals for electrical connection. With a depth of 77mm, height of 86mm, and width of 45mm, it's compact yet robust. This contactor's performance may vary with different horsepower ratings based on the phase and voltage applied; it is rated for use with up to 11⁄2 hp at single-phase -120V AC through to a maximum of 10 hp at three-phase -480V AC.

Key Features:

  • Auxiliary Contact Form: Comes with one normally open (1NO) auxiliary contact.
  • Horsepower Ratings: Rated for operation within specified ranges based on the phase and voltage; these range from single-phase (120v &240v) through to three-phase (208v,240v &480v).
  • Operating Time: Operating times may vary upon coil de-energization or energization as well as NO or NC contact opening/closing.
  • Rated Insulation Volts: The product has an insulation rating specified for both 600/690 volts.
  • Standards Compliance: Complies with international standards including IEC60947-1/60947-4-1, EN60947-1/60947-4-1 UL508 CSA C22.2
  • Thermal Amperage: Has a thermal amperage rating of up to16/35 A (at40°C)
  • Vibration Resistance: The product is rated for operation within specified vibration ranges when the contactor is either closed(4G) or open(2G).
