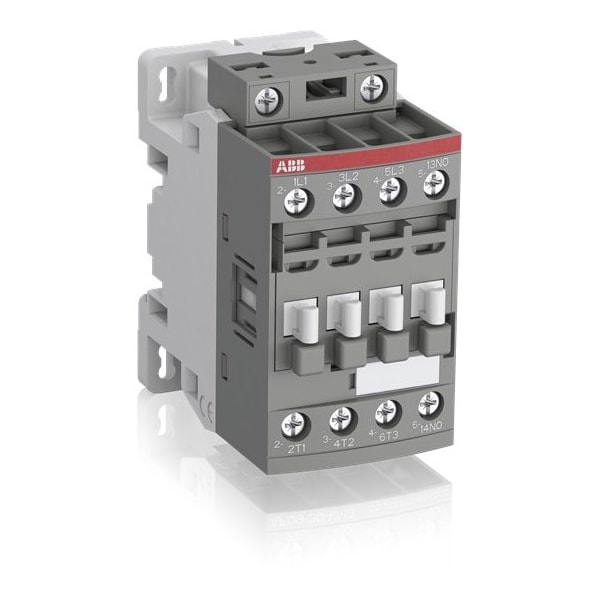

AF09-30-10-13, AF09 3P CONTR, 1NO, 100-250VAC/D

  • Mfr # AF09-30-10-13
  • Zoro # G9282127
product price:
$
95.39
/ea

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF09-30-10-13
Zoro #
G9282127
UPC #
80432553825
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Width
45 mm
Overall Depth
77 mm
Overall Height
86 mm

Details

Auxiliary Contact Form
1NO
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Net Weight
0.27 kg
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Rated Insulation Volts
600V, 690V
Max. Operating Watts
2.2 kW (at 220/230/240V), 4 kW (at 380/400V, 415V, 440V), 5.5 kW (at 500V, 690V)
IP Rating
IP20
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
150 A (at 40 Degrees C for 10 s), 35 A (at 40 Degrees C for 15 min), 60 A (at 40 Degrees C for 1 min), 300 A (at 40 Degrees C for 1 s), 80 A (at 40 Degrees C for 30 s)
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Single Phase - 240V AC
1 1/2 hp
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Single Phase - 120V AC
3/4 hp
Frequency
50/60 Hz
Conventional Free Air Thermal Current
16/35 A (at 40°C)
Maximum Voltage Rating
690V
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
25 A
Number of Auxillary Contacts
1
Number of Poles
3
Reversing Capability
Non-Reversing
Item
Contactor

Description

AF09-30-10-13 AF09 3P CONTR, 1NO, 100-250VAC/D is an IEC Magnetic Contactor with a single normally open auxiliary contact. Rated for operation within the specified voltage ranges and uses screw terminals for wiring.

Auxiliary Contact Form: 1NO

  • Coil Voltage: 100V-250V AC/DC
  • Electrical Connection: Screw Terminals
  • Terminal Connection Type: Screw
  • Depth: 77 mm; Height: 86 mm; Width: 45 mm
  • Net Weight: 0.270 kg
  • IP Rating: IP20
  • Hz: 50/60 Hz
  • Rated Voltage: rated for operation at voltages up to 690 V within specified conditions
  • Rated Insulation Volts: 600/690V
  • Max. Operating Watts: rated for operation within the specified wattage ranges under typical conditions
  • Operating Time: designed to meet specified response times under test conditions
  • Rated Short-Time Withstand Current: rated to withstand short-term currents up to specified levels under test conditions
  • Thermal Amperage: 16/35 A (40°C)
  • Vibration Resistance: 4 G (Contactor Closed), 2 G (Contactor Open)
  • Working Height: 3000 m
  • Standards: IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2

    • Restrictions
