  13. AF16-40-00-13, AF16 4P CONTR, 100-250VAC/DC

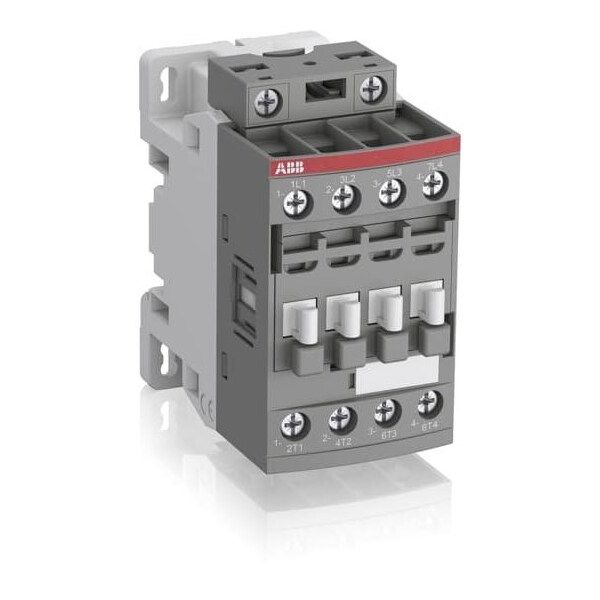

Abb AF16-40-00-13, AF16 4P CONTR, 100-250VAC/DC AF16-40-00-13 - main

AF16-40-00-13, AF16 4P CONTR, 100-250VAC/DC

  • Mfr # AF16-40-00-13

  • Zoro # G9283028

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
Terminal Connection Type
Screw
Standards
IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
IP Rating
IP20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF16-40-00-13
Zoro #
G9283028
UPC #
80432553903
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Width
45 mm
Overall Height
86 mm
Overall Depth
77 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
Terminal Connection Type
Screw
Standards
IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
IP Rating
IP20
Rated Insulation Volts
600/690V
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Max. Operating Watts
4 kW (at 220/230/240V), 7.5 kW (at 380/400V), 9 kW (at 415V, 440V, 500V, 690V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
150 A (at 40°C for 10 s), 35 A (at 40°C for 15 min), 60 A (at 40°C for 1 min), 300 A (at 40°C for 1 s), 80 A (at 40°C for 30 s)
Net Weight
0.27 kg
Frequency
50/60 Hz
Conventional Free Air Thermal Current
35 A (at 40°C)
Maximum Voltage Rating
690V

Description

The ABB AF16-40-00-13 is a four-pole IEC magnetic contactor (AF16 series) intended for switching power circuits. It features a coil voltage of 100–250 V AC/DC and has no auxiliary contacts. Wiring is via screw terminals. The unit is rated for operation within the specified voltage and frequency ranges, with overall dimensions of 45 mm wide, 86 mm high, and 77 mm deep, and a net weight of 0.270 kg. It conforms to IP20 ingress protection rating and is designed for use at elevations up to 3000 meters above sea level. Compliance includes IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, and CSA C22.2.

Auxiliary Contacts: No Auxiliary Contacts

  • Coil Voltage: 100–250 V AC/DC
  • Poles/Configuration: AF16 4P
  • Electrical Connection: Screw Terminals
  • Dimensions (W x H x D): 45 mm × 86 mm × 77 mm
  • Net Weight: 0.270 kg
  • IP Rating: IP20
  • Frequency: 50/60 Hz
  • Rated Voltage: rated for applications within the specified voltage range (up to 690 V)
  • Rated Insulation Volts: insulation ratings conforming to applicable standards within specified limits
  • Standards: IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
  • Terminal Connection Type: Screw
  • Operating Time (various actions): 13–98 ms (Coil De-energization and NC Closing), 11–95 ms (Coil De-energization and NO Opening), 38–90 ms (Coil Energization and NC Opening), 40–95 ms (Coil Energization and NO Closing)
  • Thermal Amperage: 35 A (at 40°C)
  • Rated Short-Time Withstand Current: 150 A (10 s @ 40°C), 35 A (15 min @ 40°C), 60 A (1 min @ 40°C), 300 A (1 s @ 40°C), 80 A (30 s @ 40°C)
  • Vibration Resistance: 4 G (Closed), 2 G (Open)
  • Working Height: 3000 m
  • Max Operating Watts: 4 kW (at 220/230/240 V), 7.5 kW (at 380/400 V), 9 kW (at 415/440/500/690 V)
