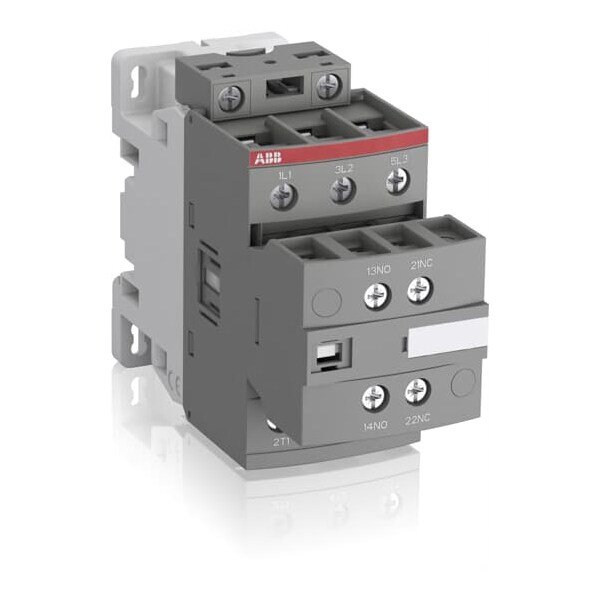

AF26-30-11-13, AF26 CONTACTOR 3P 1NO1NC 100-250VDC

  • Mfr # AF26-30-11-13
  • Zoro # G9282328
product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Max. Operating Watts
11 kW (at 380/400V, 415V), 15 kW (at 440V, 500V, 690V), 6.5 kW (at 220/230/240V)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AF26-30-11-13
Zoro #
G9282328
UPC #
88861456571
Country of Origin
France
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Max. Operating Watts
11 kW (at 380/400V, 415V), 15 kW (at 440V, 500V, 690V), 6.5 kW (at 220/230/240V)
Rated Insulation Volts
600V, 690V
Rated Short-Time Withstand Current
350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Net Weight
0.35 kg
Impulse Withstand Voltage
6 kV
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
IP Rating
IP20, IP40
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 480V AC
15 hp
Frequency
50/60 Hz
Maximum Voltage Rating
690V
Conventional Free Air Thermal Current
16/50 A (at 40°C)
Reversing Capability
Non-Reversing
Full Load Amps-Inductive
26 A
Full Load Amps-Resistive
45 A
Number of Poles
3
Number of Auxillary Contacts
2
Item
Contactor

Dimensions

Working Height
3000 m
Overall Height
86 mm
Overall Depth
111.5 mm
Overall Width
45 mm

Description

The ABB AF26-30-11-13 is an IEC Magnetic Contactor configured with auxiliary contacts of 1NC/1NO and a coil voltage range of 100 V to 250 V (AC/DC). It uses screw terminals for wiring and has compact dimensions (45 mm width, 86 mm height, 111.5 mm depth) with a net weight of 0.35 kg. The device is rated for operation within the specified voltage ranges, including insulation voltages of 600/690 V, designed for use with a 50/60 Hz power supply, and conforms to the relevant standards IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2.

Auxiliary Contact Form: 1NC/1NO

  • Coil Voltage: 100V-250V AC/DC
  • Electrical Connection: Screw Terminals
  • Dimensions (W x H x D): 45 mm x 86 mm x 111.5 mm
  • Net Weight: 0.35 kg
  • IP Rating: IP20, IP40
  • Hz: 50/60 Hz
  • Rated Voltage: 690V
  • Rated Insulation Volts: 600/690V
  • Impulse Withstand Voltage: 6 kV
  • Max. Operating Watts: 11 kW (at 380/400V, 415V), 15 kW (at 440V, 500V, 690V), 6.5 kW (at 220/230/240V)
  • Thermal Amperage: 16/50 A (at 40°C)
  • Vibration Resistance: 4 G (Contactor Closed), 2 G (Contactor Open)
  • Operating Time: 13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
  • Standards: IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
  • Working Height: 3000 m
  • Horsepower (various voltages and phases): 2 hp (Single Phase 120V), 3 hp (Single Phase 240V), 7 1/2 hp (Three Phase 208V), 7 1/2 hp (Three Phase 240V), 15 hp (Three Phase 480V)
