AF38-30-00-12, AF38 3P CONTR, 48-138VAC/DC

  • Mfr # AF38-30-00-12

  • Zoro # G9282739

product price:
$
253.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
48V-130V AC/DC
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF38-30-00-12
Zoro #
G9282739
UPC #
80432553887
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Height
86 mm
Overall Depth
86 mm
Overall Width
45 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
48V-130V AC/DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
Max. Operating Watts
18.5 kW (at 380/400V, 415V), 22 kW (at 440V, 500V, 690V), 11 kW (at 220/230/240V)
IP Rating
IP20
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Net Weight
0.31 kg
Rated Insulation Volts
600/690V
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 480V AC
25 hp
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 208V AC
10 hp
Frequency
50/60 Hz
Maximum Voltage Rating
690V
Conventional Free Air Thermal Current
50 A (at 40°C)
Full Load Amps-Inductive
40 A
Reversing Capability
Non-Reversing
Full Load Amps-Resistive
50 A
Number of Auxillary Contacts
0
Number of Poles
3
Item
Contactor

Description

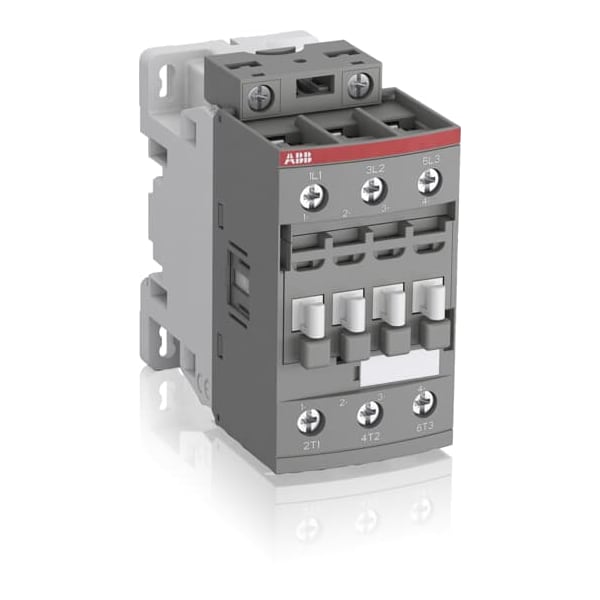

The ABB - AF38-30-00-12, AF38 3P CONTR, 48-138VAC/DC is an IEC Magnetic Contactor with a coil voltage of 48V to 130V AC/DC. It does not have auxiliary contacts and connects electrically via screw terminals. The contactor has dimensions of 86mm in depth and height, and a width of 45mm. It is rated for operation with a horsepower range that varies depending on the phase and voltage: from 2 hp at single phase -120V AC, through 5 hp at single phase -240V AC, to a maximum of 25 hp at three-phase -480V AC.

Key features include:

  • An IP rating of IP20 which indicates its level of protection against solid objects.
  • Impulse withstand voltage capacity is rated at 6 kV.
  • The product's operational wattage ranges between minimums of around11 kW (at220/230/240 V) and maximums of approximately22 kW (at440 V,500 V,and690 V).
  • The product's operation times vary between13 msand98 msfor different functions like coil de-energization and NC contact closing.
  • Rated insulation volts stand at600/690 Vand the rated short-time withstand current varies based on different conditions.
  • Complies with standards includingIEC60947-1 /60947-4-1 ,EN60947-1 /60947-4-1 ,UL508 ,CSA C22 .2 .
  • Thermal amperage stands at50 A(at40 °C ).
  • The product has been tested under conditions with vibration levels ranging from2 G(contactor open)to4 G(contactor closed).
