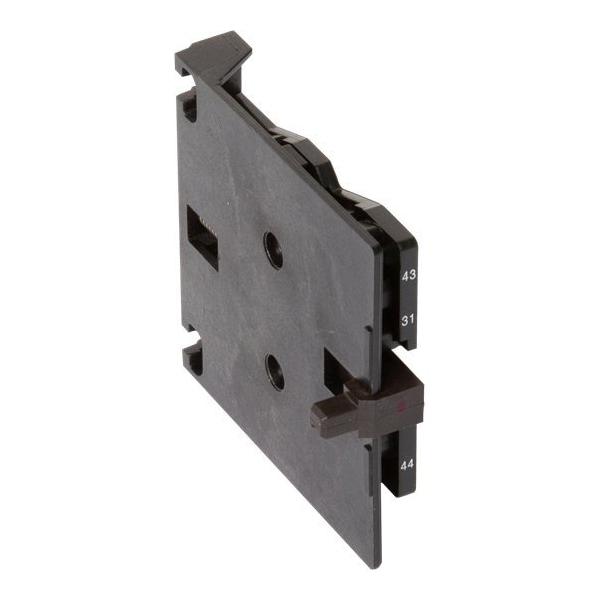

AUX.CONTACT, 1-NO/1-NC, 43443132
Mfr # CAL16-11B
Zoro # G9282249
product price:Â $300.99
/ea
Free Shipping & Returns
Key Features
Minimum Switching Capacity
0.25 VA/ 12 V / 5 mA
Product Name
Auxiliary Contact Block
Replaced Product ID (OLD)
SK829001-B
Product Net Height
68 mm
Rated Making Capacity acc. to IEC 60947-5-1
10 x Ie AC-15
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CAL16-11B
- Zoro #
- G9282249
- UPC #
- 66201948504
- Country of Origin
- Unknown
Dimensions
- Product Net Height
- 68 mm
- Product Net Depth / Length
- 70 mm
- Product Net Width
- 12.5 mm
Details
- Minimum Switching Capacity
- 0.25 VA/ 12 V / 5 mA
- Product Name
- Auxiliary Contact Block
- Replaced Product ID (OLD)
- SK829001-B
- Rated Making Capacity acc. to IEC 60947-5-1
- 10 x Ie AC-15
- Connecting Terminals (delivered in open position)
- M 3.5 (+,-) pozidriv 2 screw with cable clamp
- Power Loss
- at Rated Operating Conditions per Pole 0.2 W
- Rated Short-time Withstand Current (Icw)
- for 0.1 s 100 Afor 1 s 50 A
- Suitable For
- A-line
- Rated Operational Current AC-15 (Ie)
- (220 / 240 V) 6 A(24 / 127 V) 6 A(380 / 440 V) 4 A(500 V) 1 A(690 V) 1 A
- Rated Frequency (f)
- Supply Circuit 50 60 Hz
- Rated Operational Current DC-13 (Ie)
- (125 V) 1.8 A(24 V) 6 A(250 V) 0.6 A(48 V) 6 A(72 V) 4 A
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
- Technical Information
- AUXILIARY CONTACT
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, q = 40°C 16 A
- Product Main Type
- CAL16
- Rated Breaking Capacity acc. to IEC 60947-5-1
- 10 x Ie AC-15
- Suitable for Product Class
- CONTACTORS
Description
AUX.CONTACT,1-NO/1-NC,43443132
