  11. Liquid Tight Connector, 1/2in., 90 deg, Blk
Abb Liquid Tight Connector, 1/2in., 90 deg, Blk 4960NM - main

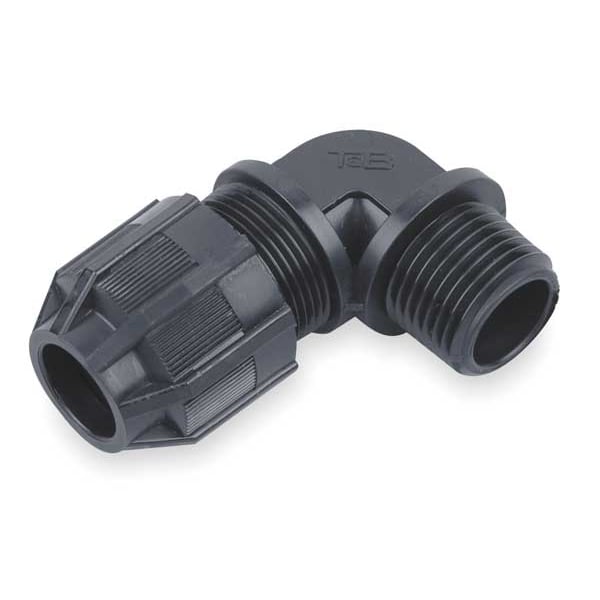

Liquid Tight Connector, 1/2in., 90 deg, Blk

  • Mfr # 4960NM

  • Zoro # G0627663

product price: $14.69
/ea

Key Features

Material
Nylon
Box Connection
1/2 in MNPT
Color
Black
Style - Connector
90 Degrees
Material - External Strain Relief
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4960NM
Zoro #
G0627663
UPC #
786210797496
Country of Origin
United States

Dimensions

Conduit Size
1/2"
Cord Dia. Range
0.13 in to 0.38 in
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 1/4 in
Length
1-27/32"
Hub Size
1/2 in MNPT
Compatible Conduit Trade Size
1/2 in
Thread Size
1/2 in
Nominal thread size inch/gas pipe thread
1/2 inch
Size
1/2 Inch
Suitable for cable diameter
3.2-9.5mm
Inner Dimensions (inches)
6x5x4
Thread length
15.875mm
Outer Dimensions (inches)
8.7x6.6x5.9

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1/2 in MNPT
Color
Black
Style - Connector
90 Degrees
Material - External Strain Relief
No External Strain Relief
Number of Cords
1
Material - Cord Connector
Nylon
Insulated
Yes
Hazardous Location Rating
Not Rated
Standards
CSA 52391, UL E13938
Gland Color Code
No Code
Item - Cord Connector
Liquid Tight Cord Connector
Strain Relief Type
No External Strain Relief
Body Color - Cord Connector
Black
Connector Type
90 Degrees
For Use With
Cable Gland Connector
Minimum Operating Temperature
-29 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector with Strain Relief
Environmental Rating
Dry, Wet
Body Material
Nylon
Grommet Color Code
No Code
Thread Type
NPT Thread
Liquid Tight
Yes
Maximum Operating Temperature
221 Degrees F
For Minimum Cable OD
0.125 in
Connection Orientation
90 Degrees
Collar Material
Nylon
Thread Gender
Male
IP Rating
IP65
Body Color
Black
For Maximum Cable OD
0.375 in
Series
NSG-90
Resistance Properties
UV Resistant
Conductor Range
0.125 Inch/3.2mm to 0.375 Inch/9.5mm
Type
Cord Connectors-90 Degree
Application
Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
Degree of protection (IP)
IP65
Temperature Rating
-34 to +105 Degrees C
Colour
Black
Strain relief
Y
Standard
UL E13938, CSA 52391
Material quality
Polyamide (PA)
Environmental Conditions
Ordinary, Wet, or Dry Locations
Special Features
Extended Range with Superior Strain Relief
Operating temperature
-34-+105°C

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.13 in to 0.38 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Black, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/4 in, Insulated Yes, Standards CSA 52391, UL E13938
