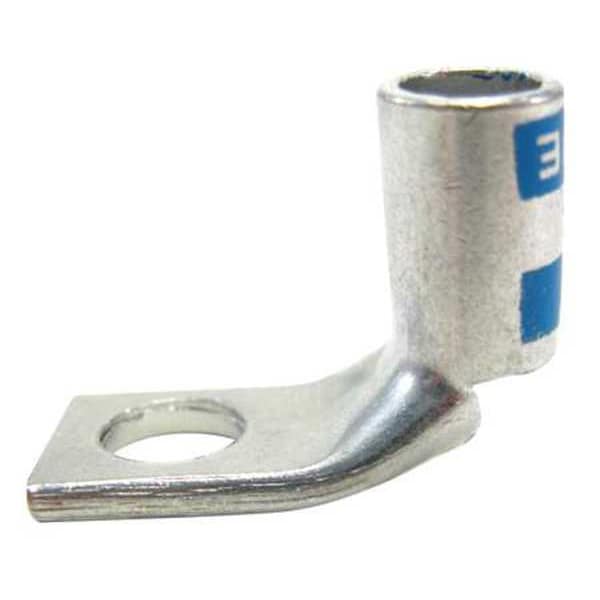

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue
Mfr # 54105UB
Zoro # G3721952
product price: $2.69
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
54105UB
Zoro #
G3721952
UPC #
786210868387
Country of Origin
Mexico
Dimensions
For Wire Size
6 AWG
For Stud Size
1/4 in
Barrel Size
Short
Tongue Width
0.44 in
Length
13/16"
Barrel Length
Short
Cable Size
6 AWG
Width
0.4375"
Length (Straight Wireway)
0.81 in
Overall Length
0.81 in
Tongue Length
0.81 in
For Stranded Copper Wire Size - Maximum
6 AWG
Hole Size
0.25 in
Overall Width
0.44 in
Barrel Outside Diameter
0.281 in
AWG size
6
Description
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 24, Tongue Angle 90 Degrees Angled, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.281 in, Connector Type Angled Barrel, Contact Finish Tin
