30A 4-Prong 125/250V L14-30P Plug to L14-20R 20A 4-Prong 125/250V Connector
Mfr # ADL1430L1420
Zoro # G809990592
Key Features
Specifications
Product Information
- MFR #
- ADL1430L1420
- Zoro #
- G809990592
- UPC #
- 851825007947
- Country of Origin
- China
Dimensions
- Outside Diameter
- 1.83 in
- Length
- 2.46 in
- Depth
- 2.46 in
- Width
- 1.83 in
- Wire Size
- 10 AWG
Details
- Coil Volts
- 125/250 V
- Shape
- Barrel
- Female Connector NEMA Configuration
- L14-20
- Voltage
- 125/250V
- Indoor/Outdoor
- Indoor/Outdoor
- Weight
- 0.5 lb
- Amperage
- 20 A
- Capacity
- 5000W
- Male Plug NEMA Configuration
- L14-30
- Material
- PVC
- Color
- Orange
- Features
- Nickel-Plated Pins & Terminals, Power Indicator Light
- Gauge/Conductor
- 10/4
- Max. Amps
- 20A
- Male NEMA Configuration
- NEMA L14-30
- Number of Female Connectors
- 1
- Female Connector Configuration
- NEMA L14-20
- Application
- Generator Adapter, Inlet Box Adapter, Emergency Power, Transfer Switch Adapter
Description

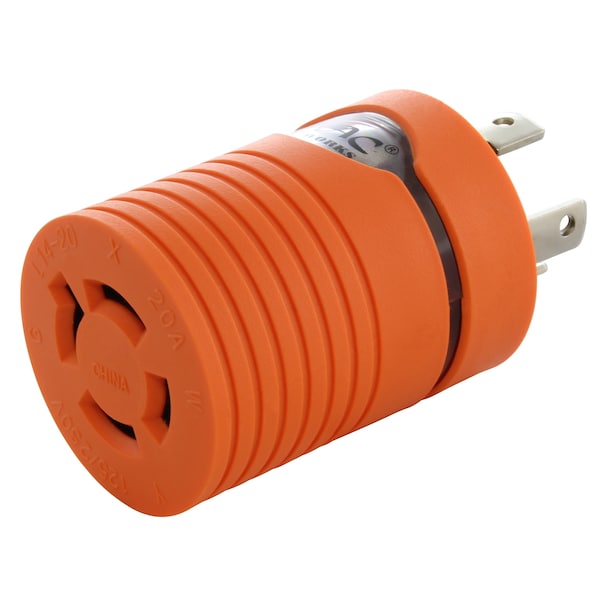

This AC WORKS brand locking adapter is a durable, compact NEMA L14‐30P to NEMA L14‐20R converter designed for generators, temporary power distribution, and large audio systems. It features a NEMA L14‐30P 30‐amp, 125/250‐volt 4‐prong locking male plug connected to a NEMA L14‐20R 20‐amp, 125/250‐volt locking female connector, allowing L14‐20 equipment to operate from L14‐30 power sources. The adapter includes nickel‐plated terminals to prevent rusting and ensure long‐term reliability. A redesigned housing provides a better grip, improved fit, and easier removal from inlets. The updated model also features a full‐ring power indicator light, giving clear visual confirmation when power is present. This generator‐grade adapter supports up to 5,000 watts, is cCSAus approved, and is backed by a 5‐year limited warranty.
- NEMA L14‐30P 30A 125/250V locking male plug
- NEMA L14‐20R 20A 125/250V locking female connector
- Compact, heavy‐duty molded design
- Nickel‐plated terminals prevent rusting
- Full‐ring power indicator light shows active power
- Improved grip and inlet fit to prevent sticking
- Generator locking adapter for industrial and audio applications
- cCSAus approved
- Includes 5‐year limited warranty
