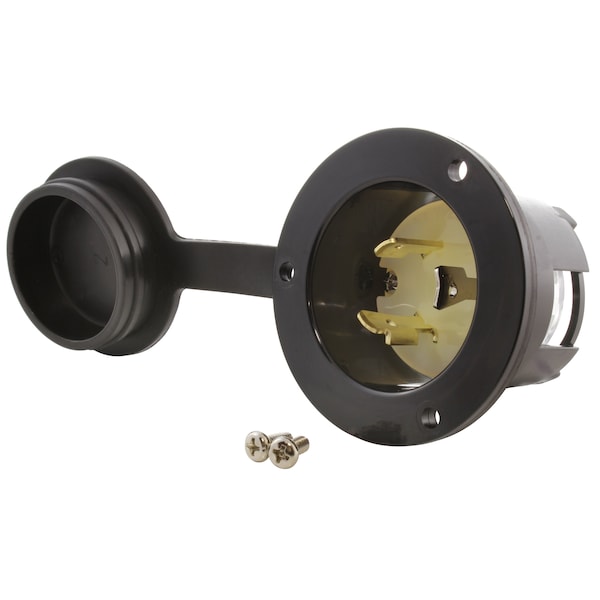

Locking Inlet, 20 A, 277V AC, Screw Terminals, Black
- Mfr # ASINL720P-FC
- Zoro # G010113063
product price:
$
28.99
/ea
Sold in multiples of 2 for $57.98
Key Features
Current Rating
20 A
Voltage Rating
277V AC
Wire Connection Type
Screw Terminals
Housing Color
Black
Cover Type
Flip-Up Cover
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ASINL720P-FC
- Zoro #
- G010113063
- UPC #
- 819145023542
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Locking Inlet
- Current Rating
- 20 A
- Voltage Rating
- 277V AC
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Cover Type
- Flip-Up Cover
- Standards
- UL, cULus Listed
- Material
- Thermoplastic
- Wattage
- 5540W
- Application
- Inlet Assembly
Description
This AC WORKS brand inlet wiring device (model ASINL720P‐FC) is a heavy‐duty NEMA L7‐20P 20‐amp, 277‐volt locking power inlet designed for industrial equipment, commercial machinery, and railroad operations. It accepts 12 or 10 AWG copper wire, providing thick, reliable conductor support for high‐power applications. The inlet features a durable, compact housing with a protective cover and thick copper connections for long‐term performance. It installs easily using #2 size screws and requires mounting holes sized between 2.10" (53.34 mm) and 2.3" (58.42 mm). This wiring device conforms to cULus E237606 and includes a 1‐year limited warranty.
- NEMA L7‐20P 20A 277V locking power inlet
- Industrial, commercial, and high‐power source inlet
- Works with 12 or 10 AWG copper wire
- Durable construction with protective cover
- Thick copper connections for reliable performance
- Mounting hole saw size: 2.10"-2.3"
- cULus E237606 listed
- Includes 1‐year limited warranty
