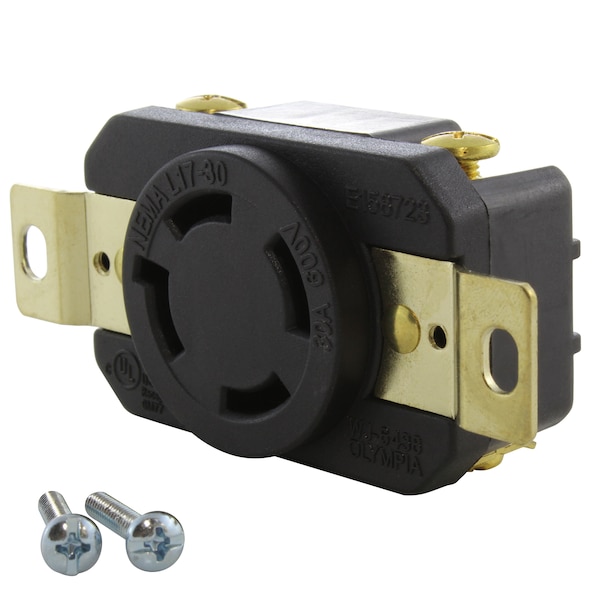

Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, Black
Mfr # FML1730R
Zoro # G410113038
Key Features
Specifications
Product Information
- MFR #
- FML1730R
- Zoro #
- G410113038
- UPC #
- 819145024235
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Locking Receptacle
- NEMA Receptacle Configuration
- L17-30R
- Current Rating
- 30 A
- Voltage Rating
- 600V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Flush
- Cover Type
- No Cover
- Flange Type
- Non-Flanged
- Standards
- UL, cUL Listed
- Resistance Properties
- Chemical Resistant, Impact Resistant
- Material
- Nylon
- Wattage
- 31140W
- Number of Female Connectors
- 1
- Application
- Flush Mount Locking Receptacle
Description
This AC WORKS brand female receptacle (model FML1730R) is a NEMA L17‐30R 30‐amp, 600‐volt, 3‐phase flush‐mount locking outlet designed for industrial applications requiring secure, high‐voltage connections. The device features a 3‐pole, 4‐wire grounding system and installs easily when replacing or upgrading an existing receptacle. The housing is chemical‐resistant and impact‐resistant, making it suitable for harsh industrial environments. The receptacle supports a maximum operating load of 31,140 watts and provides a locking connection to prevent accidental unplugging during operation. This product is UL and C‐UL certified (cULus E237606) and backed by a 1‐year limited warranty.
- NEMA L17‐30R 30A 600V flush‐mount locking receptacle
- 3‐pole, 4‐wire grounding configuration
- Maximum operating power: 31,140 watts
- Chemical‐resistant and impact‐resistant housing
- Locking industrial‐grade design prevents accidental unplugging
- cULus E237606 listed
- Made of PBT V‐0 thermoplastic
- Includes 1‐year limited warranty
