  11. Microscope, 16-3/4in.Hx9-1/4in., 30 deg.

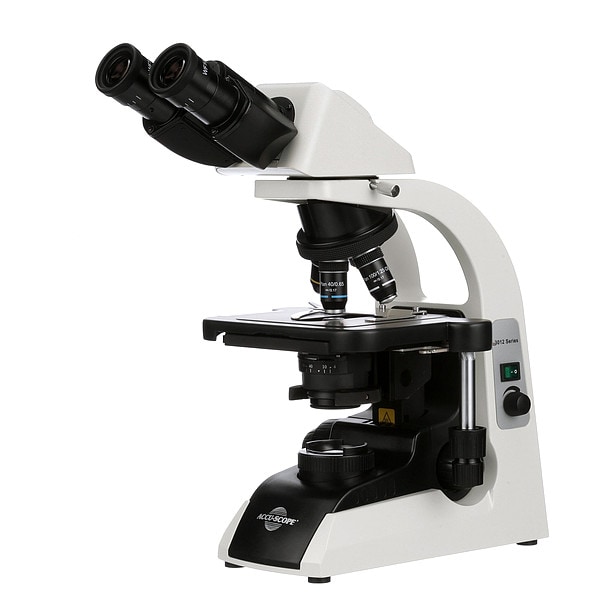

Accu-Scope Microscope, 16-3/4in.Hx9-1/4in., 30 deg. 3013-LED - main

Microscope, 16-3/4in.Hx9-1/4in., 30 deg.

  • Mfr # 3013-LED

  • Zoro # G8820752

product price: $1,634.99
/ea
Free Shipping & Returns

Key Features

Includes
Coaxial Focus
Overall Width
9 1/4 in
Features
All Metal Gears, Brass Fine Focus Gear, Coaxial Focusing System with Adjustable Tension Control and Upper Limit Stop to Prevent Accidental Damage to Slides, Filter Holder, Fine Focus Precision of 2 micronm Minimum, Micrometric Increments on Fine Focus Knob, N.A. 1.25 Abbe Condenser with Aperture Diaphragm and Position Guide Markings for Each Objective, Rear Facing Quintuple, Ball Bearing Nosepiece with Positive Click Stops to Ensure Parcentration
Optical Magnification
4X to 100X
Optical Field of View
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3013-LED
Zoro #
G8820752
UPC #
-
Country of Origin
China

Dimensions

Overall Width
9 1/4 in
Manufacturers Warranty Length
5 yr
Base Dimensions
9 1/4 x 10 in
Overall Height
16 3/4 in
Overall Depth
10 in
Stage Width
150 mm
Eyepiece Size
WF10x/22 mm
Base Length
10 in
Base Width
9 1/4 in
Stage Depth
188 mm
Eyepiece Diameter
26.5 mm

Details

Item
Microscope
Includes
Coaxial Focus
Features
All Metal Gears, Brass Fine Focus Gear, Coaxial Focusing System with Adjustable Tension Control and Upper Limit Stop to Prevent Accidental Damage to Slides, Filter Holder, Fine Focus Precision of 2 micronm Minimum, Micrometric Increments on Fine Focus Knob, N.A. 1.25 Abbe Condenser with Aperture Diaphragm and Position Guide Markings for Each Objective, Rear Facing Quintuple, Ball Bearing Nosepiece with Positive Click Stops to Ensure Parcentration
Optical Magnification
4X to 100X
Optical Field of View
22 mm
Working Distance
0.21 mm, 0.8 mm, 10.8 mm, 15 mm
Eyepiece Type
Trinocular
Optical Magnification Range
40X to 1000X
Eyepiece Protractor
Yes
Light Source
LED
Maximum Magnification Capability
10X
Microscope Type
Compound
Stand Type
Standard
Product Type
Microscope
Maximum Viewing Angle
30 Degrees
Optical Magnification - Maximum
100X
Minimum Interpupillary Distance Adjustment
47 mm
Standards
CE, ISO 14001: 2018, ISO 9001: 2018, UL
Wattage
5 W
Maximum Interpupillary Distance Adjustment
75 mm
Optical Magnification - Minimum
4X
Weight
16 lb
Stand Material
Aluminum
Head Rotation Angle
360 Degrees
Objectives Included
WF10x/22 mm
Adjustable Viewing Angle
Yes
Adjustable Stage
Yes

Description

Microscope, Eyepiece Type Trinocular, Microscope Type Compound, Stand Type Standard, Light Source LED, Optical Field of View 22 mm, Optical Magnification 4X to 100X, Maximum Magnification Capability 10X, Base Dimensions 9 1/4 x 10 in, Manufacturers Warranty Length 5 yr, Working Distance 0.21 mm, 0.8 mm, 10.8 mm, 15 mm, Eyepiece Protractor Yes
