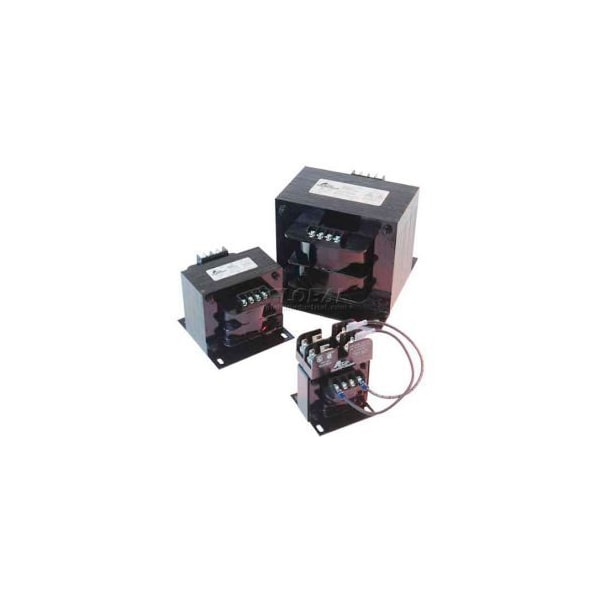

Control Transformer, 750 VA, 110/115/120V, 240/480V, 230/460V, 220/440V
Mfr # TB-81216
Zoro # G502712880
product price: $404.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
240/480V, 230/460V, 220/440V
Output Voltage
110/115/120V
Power Rating
750 VA
Phase
1
Mounting - Transformer
Floor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TB-81216
- Zoro #
- G502712880
- UPC #
- 4750335016
- Country of Origin
- United States
Dimensions
- Overall Height
- 4.47 in
- Overall Width
- 5.25 in
Details
- Item
- Control Transformer
- Input Voltage - Transformer
- 240/480V, 230/460V, 220/440V
- Output Voltage
- 110/115/120V
- Power Rating
- 750 VA
- Phase
- 1
- Mounting - Transformer
- Floor
- Hz - Electrical
- 50/60 Hz
- Winding Material
- CU
- Temperature Rise
- 80°C
- Weight
- 23 lb
Description
TB SERIES - 750 VA, 240 X 480, 230 X 460, 220 X 440 PRIMARY VOLTS -- 120/115/110 SECONDARY VOLTS FEATURES
- 600 VOLT CLASS AND BELOW 50 - 1000 VA, 50/60HZ 80°C TEMPERATURE RISE, 130°C INSULATION CLASS CONSTRUCTED WITH HIGH QUALITY SILICON STEEL LAMINATION TO MINIMIZE CORE LOSSES AND INCREASE EFFICIENCY DESIGNS INCORPORATE PRECISION SPLIT BOBBIN WOUND COILS FOR IMPROVED REGULATION PRIMARY FUSE BLOCKS AND SECONDARY FUSE KITS AVAILABLE AND EASILY ADAPTABLE SERIES-PARALLEL CONNECTING LINKS SAVE WIRING AND LABOR COSTS TERMINAL BLOCKS ALLOW FULL ACCESS FOR RING TERMINALS FOR EASY INSTALLATION EVEN WITH SOLID STRAND CONDUCTORS INTEGRALLY MOLDED TERMINAL BLOCKS WITH ISOLATION BARRIERS TO PREVENT ARC OVER FOOTPRINT MATCHES TA SERIES FOR EASY INTERCHANGEABILITY COPPER WINDINGS ON ALL GROUPS 240 X 480, 230 X 460, 220 X 440 PRIMARY VOLTS; 120/115/110 SECONDARY VOLTS; 1° 50/60HZ
