  6. DC Power Supply, 90 to 254 V AC, 12 VDC, 15W, 1.2, Din Rail

This item is Discontinued.

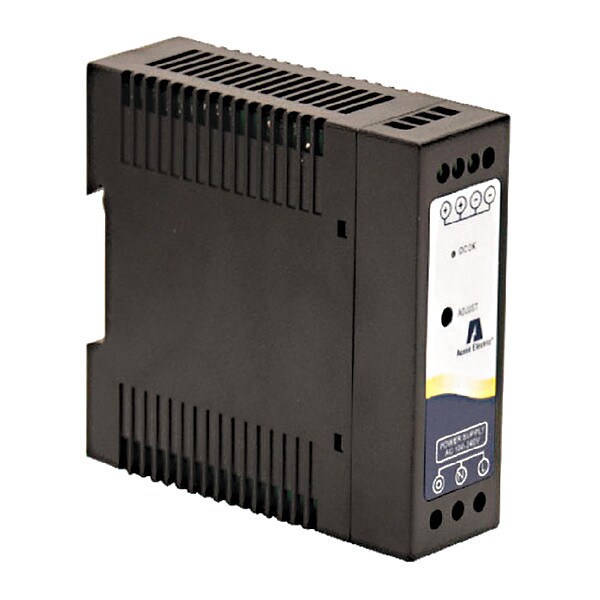

Acme Electric DC Power Supply, 90 to 254 V AC, 12 VDC, 15W, 1.2, Din Rail DMP1120125

DC Power Supply, 90 to 254 V AC, 12 VDC, 15W, 1.2, Din Rail (Discontinued)

  • Mfr # DMP1120125
  • Zoro # G3789109
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DMP1120125
Zoro #
G3789109
UPC #
047503085356
Country of Origin
China

Dimensions

Width
0.9 in
Depth
4.02 in
Height
3.54 in
Dimensions
4.02 in x 0.9 in x 3.54 in
Length
4.02 in
Length (In.)
4.02 in

Details

Item
DC Power Supply
Input Voltage
90 to 254 V AC
Mounting
DIN Rail
Features
All Housings Conveniently Snap Onto Standard Assuring Permanent Mounting Without The Use of Any Tools. Universal Input Eliminates Voltage Gaps for Full Product Application Versatility
Status Indicator
LED DC OK And Overload
Operating Temp. Range
-10 Degrees to 50 Degrees C
Peak Amps
1.2
Series
DM
Hold Up Time
Greater Than 108 msec @ 230V AC, Greater Than 26 msec @ 120V AC
Standards
CE, cUL, UL
Style
Switching
Case Material
Plastic Case
IP Rating
20
Phase - Electrical
Single
Output Voltage
12 VDC
Output Amps
1.2
Output Noise
Less Than 1%
Hz
47 to 63 Hz
Power Rating
15W
NEMA Rating
1
Amps
1.07 to 1.25 A
Temp. Range
-10 to 50°C
Max. Wattage
15 W
Frequency
47-63 Hz
Type
DIN Rail
UPC
47503085356
Efficiency
0.78
Weight
0.29 lb
Amperage
1.25 - 1.07 A
Voltage Rating
90 - 264 VAC
Temperature Range (C)
-10 to +50 Degrees
Voltage
90 to 264V AC

Description

DC Power Supply, Input Voltage 90 to 254 V AC, Output Voltage 12V DC, Power Rating 15W, Output Amps 1.2, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 3.54 in, Width 0.9 in, Depth 4.02 in, Series DM, Hz 47 to 63 Hz, Phase - Electrical Single, Peak Amps 1.2, IP Rating 20, Output Noise Less Than 1 Percent, Hold Up Time Greater Than 108 msec @ 230V AC, Greater Than 26 msec @ 120V AC, Status Indicator LED DC OK And Overload, NEMA Rating 1
