Shop ACME ELECTRIC

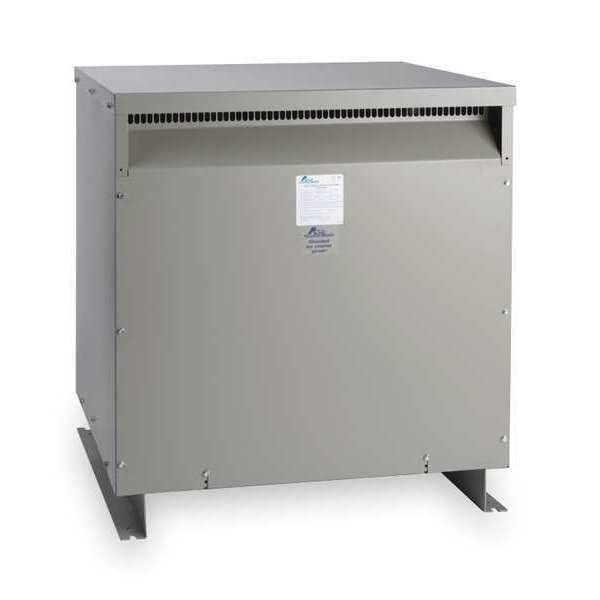

Low Voltage Distribution Transformer, 15 kVA, NEMA 3R, 120/208V AC, 480V AC

  • Mfr # T3533111S
  • Zoro # G2476284
CAD Available

product price:
$
2,333.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

CAD Drawing
Input Voltage - Transformer
480V AC
Output Voltage
120V AC, 208V AC Wye
Power Rating
15 kVA
Phase
Three
Mounting - Transformer
Floor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T3533111S
Zoro #
G2476284
UPC #
047503733653
Country of Origin
Mexico
CAD Available
Yes
Item
Low Voltage Distribution Transformer
Input Voltage - Transformer
480V AC
Output Voltage
120V AC, 208V AC Wye
Power Rating
15 kVA
Phase
Three
Mounting - Transformer
Floor
Hz - Electrical
60 Hz
NEMA Enclosure Rating
3R
IP Rating
IP14
Outdoor Rated - Transformer
Yes
Winding Material
Aluminum
Color
ASA 61 Gray
Temperature Rise
115 Degrees C
Voltage Function - Transformer
Step Down
Enclosure Finish
Powder Polyurethane Paint
Enclosure Material
Steel
Winding Material - Transformer
Aluminum
Standards
CSA C22.2 No. 47, UL 506
Primary Voltage
480D V
UL Standard
UL 506
Material type
ZFIN
Construction
Encapsulated
Max Temperature Rise
115 Degrees Celsius
BNFC Taps
2
CSA Standard
C22.2 No. 47
Electrostatic Shield
Shielded
Taps % Steps
0.05
UL Insulation Class
180°C
Features
Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection
Product Category
Dry Type Distribution Transformer
Carton Quantity
1
Sound Level
45 dB
Includes Knockouts
No Knockouts
Input Voltage
480V AC
Voltage Function
Step Down
Frequency
60 Hz
Wire Color
ASA 61 Gray

Dimensions

Overall Height
18.86 in
Overall Width
20.3 in
Overall Depth
9.03 in
Knockout Size - Transformer
No Knockout

Description


2


  • • Quiet operation with sound levels below NEMA standards

  • • Electrostatic shield for enhanced protection
