  6. Low Voltage Distribution Transformer, 9 kVA, NEMA 3R, 120/208V AC, 240V AC

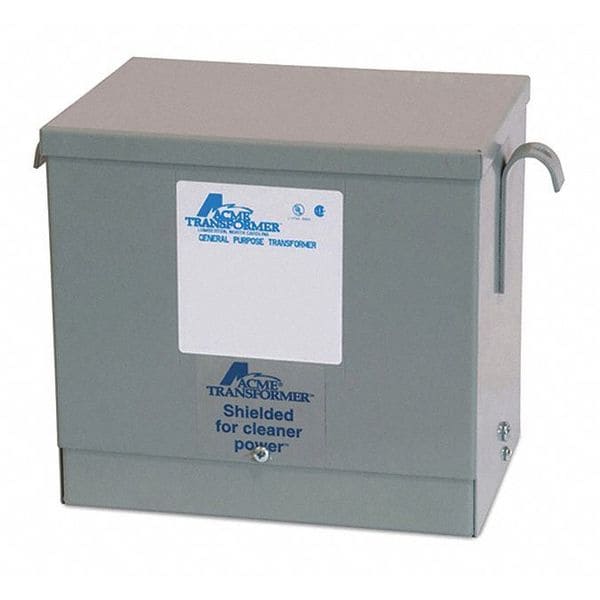

Acme Electric Low Voltage Distribution Transformer, 9 kVA, NEMA 3R, 120/208V AC, 240V AC T2A533601S - main

Low Voltage Distribution Transformer, 9 kVA, NEMA 3R, 120/208V AC, 240V AC

  • Mfr # T2A533601S

  • Zoro # G2222696

product price:  $1,660.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Input Voltage - Transformer
240V AC
Output Voltage
120/208V AC
Power Rating
9 kVA
Phase
3
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T2A533601S
Zoro #
G2222696
UPC #
047503733905
Country of Origin
Mexico

Dimensions

Overall Height
12 in
Overall Width
15 in
Overall Depth
18 in
Knockout Size - Transformer
1-1/4 in, 3/4 in

Details

Item
Low Voltage Distribution Transformer
Input Voltage - Transformer
240V AC
Output Voltage
120/208V AC
Power Rating
9 kVA
Phase
3
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP14
Outdoor Rated - Transformer
Yes
Winding Material
Aluminum
Color
Gray
Enclosure Material
Steel
Winding Material - Transformer
Aluminum
Enclosure Finish
Powder Polyurethane Paint
Voltage Function - Transformer
Step Down
Standards
CSA C22.2 No. 47, UL 506
Material type
ZFIN
Construction
Encapsulated
UL Insulation Class
180°C
Taps % Steps
0.05
BNFC Taps
2
Electrostatic Shield
Shielded
Max Temperature Rise
115 Degrees Celsius
UL Standard
UL 506
Primary Voltage
240D V
CSA Standard
C22.2 No. 47
Product Category
Dry Type Distribution Transformer
Features
Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection
Includes Knockouts
Knockouts Included
Temperature Rise
115°C

Description


2


  • • Quiet operation with sound levels below NEMA standards

  • • Electrostatic shield for enhanced protection
