  9. Transformer 3PH 9KVA 480-208Y120 PANELTRAN

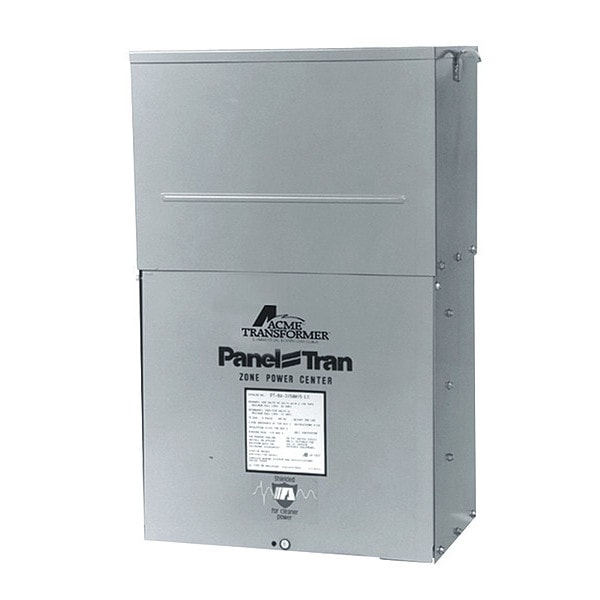

Acme Electric Transformer 3PH 9KVA 480-208Y120 PANELTRAN PTBA3150009LS - main

Transformer 3PH 9KVA 480-208Y120 PANELTRAN

  • Mfr # PTBA3150009LS

  • Zoro # G3713013

product price: $4,167.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
480V AC; 120/208V AC
Hz - Electrical
60 Hz
Standards
CSA C22.2 No. 47; UL 1062
Depth
7.63 in
Winding Material - Transformer
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTBA3150009LS
Zoro #
G3713013
UPC #
47503720905
Country of Origin
Mexico

Dimensions

Depth
7.63 in
Height
33.75 in
Width
22.13 in
Length
7.63 in
Dimensions
7.63 in x 22.13 in x 33.75 in

Details

Item
Power Centers
Voltage Rating
480V AC; 120/208V AC
Hz - Electrical
60 Hz
Standards
CSA C22.2 No. 47; UL 1062
Winding Material - Transformer
Copper
Temp. Rise
115°C
VA Rating - Transformer
9 kVA
Input Voltage - Transformer
480D V
Output Voltage - Transformer
208Y/120 V
Enclosure Type
Encapsulated
NEMA Rating
NEMA 3R
Insulation Max. Temp.
180°C
Type
Panel-Tran Zone Power Centers
Mounting - Transformer
Wall
Secondary Breaker
Q330 (30A)
Max Temperature Rise
115 Degrees Celsius
Frequency Rating
60 Hz
Carton Quantity
1
Primary Voltage
480D V
UL Standard
UL 1062
Secondary Voltage
208Y/120 V
Taps % Steps
0.05
Product Category
Panel-Tran Zone Power Centers
Electrostatic Shield
Shielded
BNFC Taps
2
Winding Material
CU
Primary Breaker
ED43B025L (25A)
UL Insulation Class
180°C
CSA Standard
C22.2 No 47
Mounting Type
Wall
Construction
Encapsulated
Max. Voltage
480V AC
Body Material
Stainless Steel

Description


-


  • • Fully compliant with NEC 450-3

  • • Designed for indoor and outdoor applications

  • • Electrostatic shield for enhanced protection

  • • Primary and Secondary main circuit breakers provided
