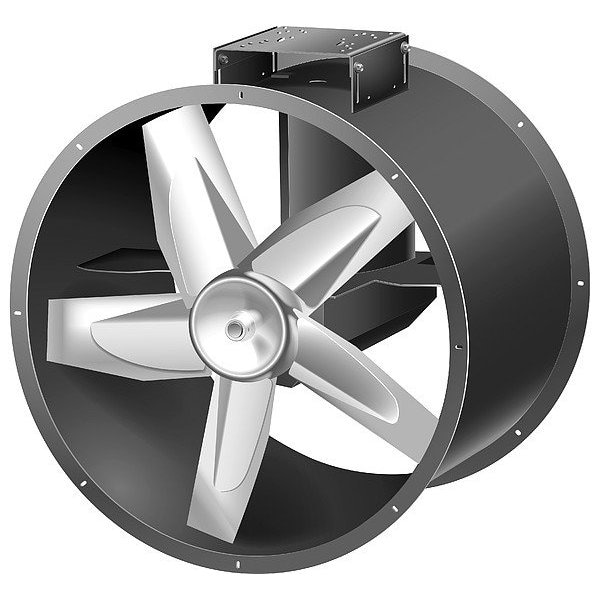

Tubeaxial Fan, Steel, 5 Blades, 2,095 RPM

  • Mfr # HQ240004

  • Zoro # G210069801

product price:
$
1,057.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Blade Material
Aluminum
Housing Material
Steel
Number of Blades
5
Standards
ANSI/AMCA 205-05, ISO 14 694
Housing Finish
Polyester Powder Coated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HQ240004
Zoro #
G210069801
UPC #
-
Country of Origin
United States

Dimensions

Center Height
24 in
Bolt Circle Diameter
25 3/4 in
Blade Diameter
24 7/16 in
Overall Diameter
26 7/8 in
Body Diameter
26 7/8 in

Details

Blade Material
Aluminum
Housing Material
Steel
Number of Blades
5
Item
Tubeaxial Fan
Standards
ANSI/AMCA 205-05, ISO 14 694
Housing Finish
Polyester Powder Coated
Bearing Type
Ball Bearing
Drive Type
Belt Drive
For Air Type
Clean Air
Minimum Airflow
2,012 cfm
Includes Drive Package
No
Maximum Motor Horsepower
1 1/2 hp
Maximum Fan Speed
2,095 RPM
Maximum Airflow
40,000 cfm
Minimum Motor Horsepower
1/4 hp
Assembly
Assembled
Series
HQ
Includes Motor
No
Maximum Static Pressure
2 in wc
Maximum Inlet Air Temperature
200 Degrees F
Maximum Motor Speed
2,095 RPM
Mounting Orientation
Horizontal, Vertical
Resistance Properties
Corrosion Resistant, Heat Resistant
Maximum Ambient Temperature
104 Degrees F
Housing Material Fabrication
Cold Rolled
Minimum Motor Speed
858 RPM

Description

Tubeaxial Fan, Blade Diameter 24 7/16 in, Maximum Motor Horsepower 1 1/2 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 2,095 RPM, Minimum Motor Speed 858 RPM, Maximum Airflow 40,000 cfm, Minimum Airflow 2,012 cfm, Maximum Static Pressure 2 in wc, For Air Type Clean Air, Assembly Assembled, Blade Material Aluminum, Housing Material Steel, Number of Blades 5, Standards ANSI/AMCA 205-05, ISO 14 694, Bolt Circle Diameter 25 3/4 in, Includes Drive Package No, Includes Motor No
