Shop ACTION PUMP

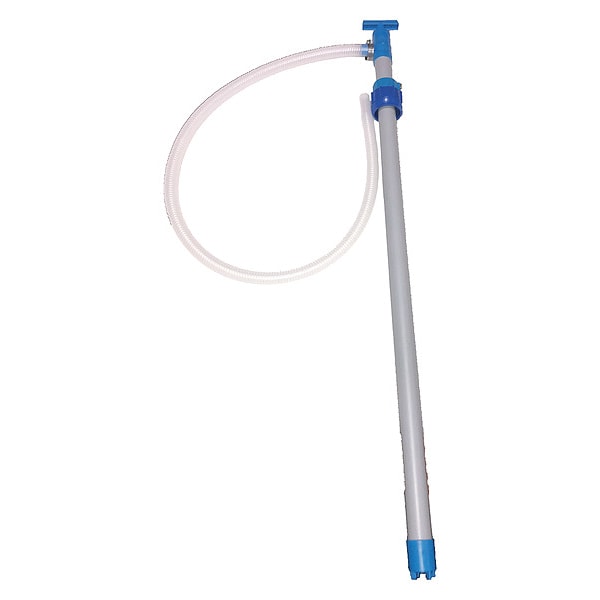

Hand Drum Pump, Piston, PVC, 5 gpm, 10 psi

  • Mfr # ACT2871

  • Zoro # G5778116

product price:  $58.35
/ea

Key Features

Action Type
Piston
For Media Type
Antifreeze, Chromic Acid, Diesel Fuel, Ethylene Glycol, Glycerin, Hydrochloric Acid, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Stoddard Solvent
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
28 oz per stroke
Max. Viscosity
1,500 SUS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACT2871
Zoro #
G5778116
UPC #
-
Country of Origin
United States

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Discharge Size FPT (In.)
1
Hose Length
3 ft
Min. Length
1 ft.
Suction Tube Length
38 in
Length
44"
Inlet Size
1-1/2"
Discharge Tube Length
36"
Manufacturers Warranty Length
90 days
Hose Inside Dia.
1 in
Adapter Dia.
2"
Spout Connection Size
1 in
Height Above Container
8 3/8 in
Bung Connection Dia.
2 in
Hose Outside Dia.
1 1/8 in
Overall Width
4-5/8 in
Overall Height
2-13/16 in
Overall Diameter
1-1/2 in
Hose Outside Diameter
1 1/8 in
Hose Inside Diameter
1 in
Adapter Connection Diameter
2 in
Suction Tube Length - Maximum
38 in

Details

Item
Hand Pump
Action Type
Piston
For Media Type
Antifreeze, Chromic Acid, Diesel Fuel, Ethylene Glycol, Glycerin, Hydrochloric Acid, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Stoddard Solvent
Max. Flow Rate
28 oz per stroke
Max. Viscosity
1,500 SUS
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Polyethylene, PVC
Includes Suction Tube
Yes
For Use With
Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids
Hose Tube Material
Polyethylene
Discharge Tube Outlet ID
7/8 in
Discharge Tube Outlet OD
1 in
Metered
No
Adapter Material
PVC
Ounces per Stroke
28 oz.
Adapter Type
Bung
Discharge Tubing Material
PVC
Piston Material
PVC
Suction Tube Type
Tube
Features
Good Chemical Resistance
Includes
Hose Clamp
Self-Priming
Yes
Suction Tube Material
PVC
Seal Material
PVC
Max. Flow GPM
5
Agency Compliance
ISO 22241-3
Includes Nozzle
No
Max. Head Pressure
3 psi
Hose Cover Material
Polyethylene
Not Recommended Chemicals
Acetone, Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Spout Material
Polyethylene
Suction Tube ID
3/4 in
Max. Fluid Temp.
115 Degrees F
Suction Tube OD
1 in
Includes Bung Adapter
Yes
Min. Operating Temp.
35 Degrees F
Food Grade
No
Housing Material - Pumps
PVC
For Container Type
Bucket, Drum
Max. Head - Pumps
3 ft
Power Source
Manual
Pump Connection ID
1 1/2 in
Compatible Chemicals
Includes Discharge Hose
Yes
Runs Dry
Yes
Includes Spout
Yes
Max. Outlet Pressure
5 psi
Gear Lube
NT
Adapter Connection Type
MNPT
Maximum Head
3 ft
Static Protection
Not Groundable
Maximum Fluid Temperature
115 Degrees F
Chemical Compatibility
Antifreeze Coolant, Chromic Acid 5%, Diesel Fuel, Ethylene Glycol, Glycerin, Hydrochloric Acid 20%, Hydrochloric Acid 37%, Methanol, Nitric Acid 10% Solution, Nitric Acid 20% Solution, Nitric Acid 50% Solution, Phosphoric Acid 40% Solution, Sodium Bicarbonate 10%, Stoddard Solvent
Maximum Outlet Pressure
5 psi
Maximum Viscosity
1,500 SUS
Maximum Flow Rate
28 oz per stroke
Wetted Material
PVC
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
Housing Material
PVC
Adapter Connection Standard
MNPT
Container Cover Type Included
No Cover Included
Mount Type
Bung
Maximum Head Pressure
3 psi
Pump Technology
Piston
Duty Cycle
Continuous
Minimum Operating Temperature
35 Degrees F

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size 1 in, Self-Priming Yes, Metered No, Hose Length 3 ft, Includes Discharge Hose Yes, Piston Material PVC, Features Good Chemical Resistance, Housing Finish Not Applicable, Seal Material PVC, For Use With Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids, Adapter Connection Type MNPT, For Container Type Bucket, Drum, Hose Cover Material Polyethylene, Includes Bung Adapter Yes

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
