Shop ACTION PUMP

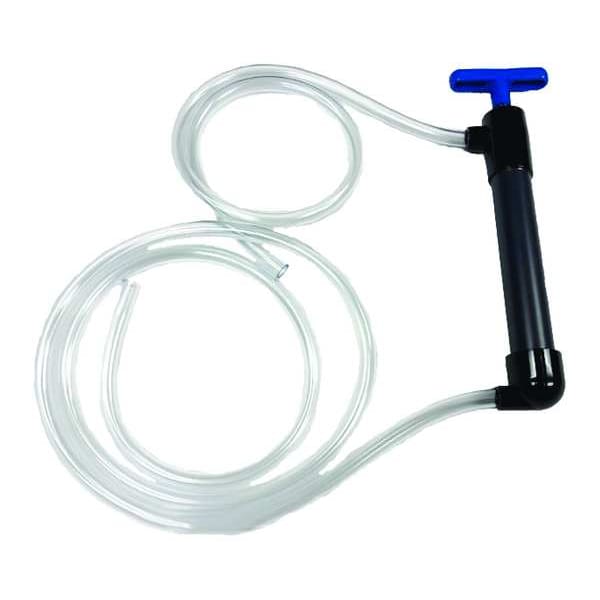

Hand Drum Pump, Siphon, PVC, 3 gpm, 10 psi

  • Mfr # ACT2874

  • Zoro # G5778125

product price:  $41.69
/ea

Key Features

Action Type
Siphon
For Media Type
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
4 oz per stroke
Max. Viscosity
1,000 SUS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACT2874
Zoro #
G5778125
UPC #
-
Country of Origin
United States

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Length
12"
Hose Length
6 ft
Inlet Size
1/2"
Manufacturers Warranty Length
90 days
Discharge Tube Length
60"
Hose Inside Dia.
3/8 in
Suction Tube Length
60 in
Min. Length
1 ft.
Discharge Size FPT (In.)
1/2
Hose Outside Dia.
5/8 in
Spout Connection Size
1/2 in
Spout Length
36 in
Overall Width
4-5/8 in
Overall Height
2-1/4 in
Overall Diameter
1/2 in
Hose Inside Diameter
3/8 in
Suction Tube Length - Maximum
60 in
Hose Outside Diameter
9/16 in

Details

Item
Hand Pump
Action Type
Siphon
For Media Type
Max. Flow Rate
4 oz per stroke
Max. Viscosity
1,000 SUS
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
PVC
Includes Suction Tube
Yes
For Use With
Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids
Hose Tube Material
PVC
Discharge Tube Outlet ID
3/8 in
Discharge Tube Outlet OD
5/8 in
Features
Good Chemical Resistance
Ounces per Stroke
4 oz.
Self-Priming
Yes
Discharge Tubing Material
PVC
Metered
No
Suction Tube Material
PVC
Piston Material
PVC
Suction Tube Type
Hose
Max. Flow GPM
3
Seal Material
PVC
Includes
Hose Clamp
Agency Compliance
ISO 22241-3
Includes Bung Adapter
No
Max. Head - Pumps
3 ft
Includes Nozzle
No
Includes Spout
Yes
Hose Cover Material
PVC
Max. Fluid Temp.
115 Degrees F
Compatible Chemicals
Power Source
Manual
For Container Type
Bucket, Drum
Housing Material - Pumps
PVC
Not Recommended Chemicals
Acetone, Anhydrous Ammonia, Brake Fluid, Ethyl Acetate, Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Lacquer Thinners, Lithium Grease, Paint Thinner, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%, Toluene, Trichlorethylene 50%, Turpentine, Xylene
Food Grade
No
Suction Tube ID
3/8 in
Max. Head Pressure
3 psi
Runs Dry
Yes
Includes Discharge Hose
Yes
Suction Tube OD
9/16 in
Spout Material
PVC
Min. Operating Temp.
35 Degrees F
Max. Outlet Pressure
5 psi
Gear Lube
NT
Mount Type
Bung
Container Cover Type Included
No Cover Included
Housing Material
PVC
Chemical Compatibility
Maximum Flow Rate
4 oz per stroke
Pump Technology
Piston
Maximum Fluid Temperature
115 Degrees F
Meter Type Included
No Meter Included
Maximum Viscosity
1,000 SUS
Duty Cycle
Continuous
Includes Follower Plate
No Follower Plate Included
Static Protection
Not Groundable
Adapter Material
PVC
Minimum Operating Temperature
35 Degrees F
Wetted Material
PVC
Maximum Outlet Pressure
5 psi
Maximum Head
3 ft
Maximum Head Pressure
3 psi
Power Source - TS Only
Manual

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size 1/2 in, Self-Priming Yes, Metered No, Hose Length 6 ft, Includes Discharge Hose Yes, Piston Material PVC, Features Good Chemical Resistance, Housing Finish Not Applicable, Seal Material PVC, For Use With Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids, For Container Type Bucket, Drum, Hose Cover Material PVC, Includes Bung Adapter No, Includes Nozzle No, Includes Spout Yes

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
