Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 and RS232

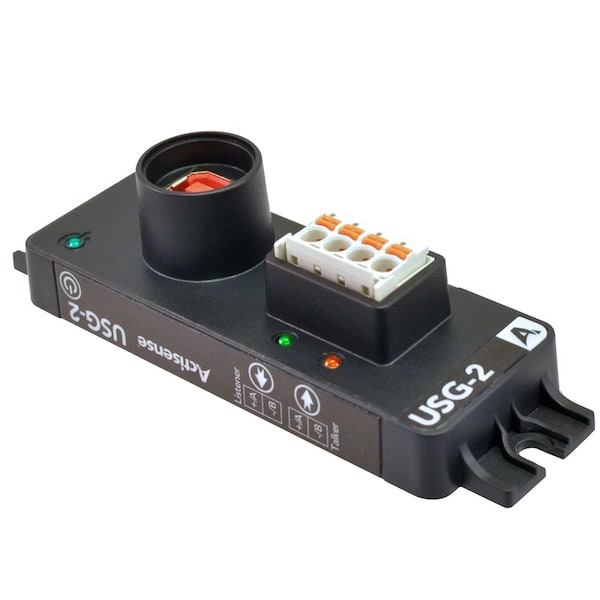

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232 The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network. The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus. It provides a far safer connection when compared to standard USB to serial converters. Electrical isolation is provided by the ISO-Drive output and OPTO-isolated input making installation simple and free from ground loops. The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port. The USG-2 is the safest way to connect a boat's data network to an on-board PC. Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications: Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port - Talker & Listener Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Omega Talker output current drive - 20
