NMEA2000 Micro T-Piece w/Female Connectors & 3M UL Certified Cable

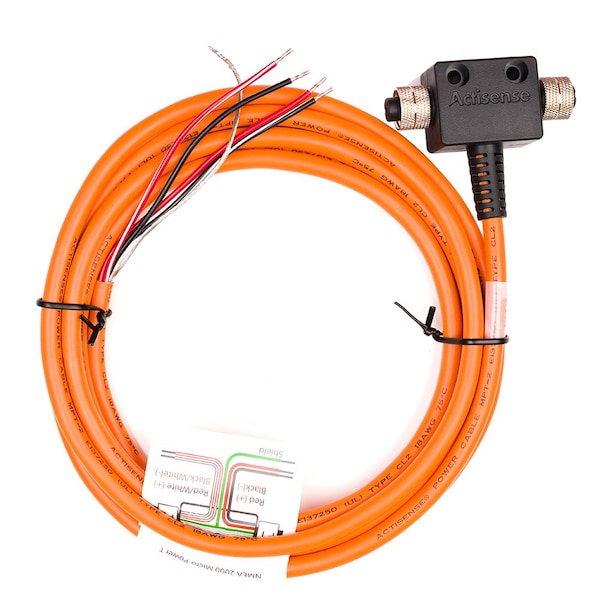

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network. Now with improved strain relief! The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable 'plug and play' connectivity. The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible. The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing. Technical Specifications: Electrical Rated Current - 4A (each feed) Rated Voltage - 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarization - Standard M12 -"A"- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm +/-0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34-strand tinned copper) Shield - Al-mylar Weight - 290g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20 Degrees C to +70 Degrees C Storage Temperature - -40 Degrees C to +85 Degrees C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
