Shop ACUITY

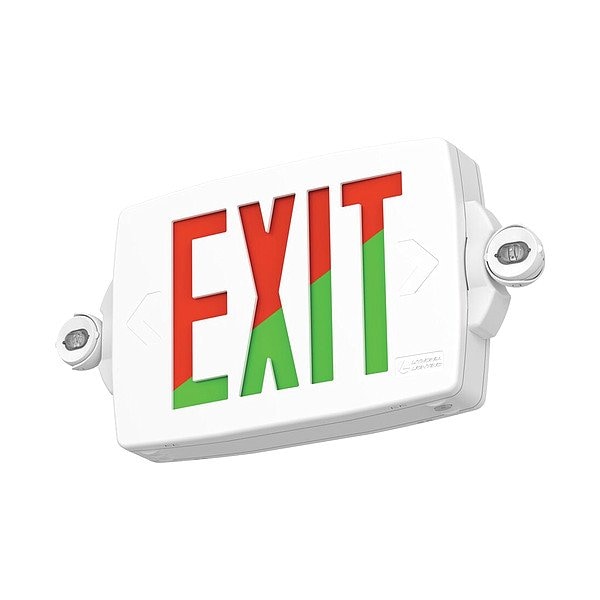

Exit Sign, White Housing, Ceiling/Wall

  • Mfr # 288AS9

  • Zoro # G722603494

product price:
$
167.99
/ea
Free Shipping & Returns

Key Features

Directional Indicators
Universal Field Selectable Chevrons
Background Color
White
Lamp Head Light Source
LED
Application
Damp Location
Standards
California Energy Commission Title 20 section 1605.3 (W)(4), FCC Title 47, Part 15, Subpart A, FCC Title 47, Part 15, Subpart B, NFPA 101, NFPA 70 (NEC), NOM Certified, OSHA, UL 924, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
288AS9
Zoro #
G722603494
UPC #
0197590389667
Country of Origin
Viet Nam

Dimensions

Overall Width
16 1/2 in
Manufacturers Warranty Length
5 yr Limited
Overall Height
8 1/4 in
Overall Depth
2 1/2 in

Details

Directional Indicators
Universal Field Selectable Chevrons
Background Color
White
Lamp Head Light Source
LED
Application
Damp Location
Standards
California Energy Commission Title 20 section 1605.3 (W)(4), FCC Title 47, Part 15, Subpart A, FCC Title 47, Part 15, Subpart B, NFPA 101, NFPA 70 (NEC), NOM Certified, OSHA, UL 924, UL Listed
Fixture Wattage
3.5 W, 4.5 W
Housing Color
White
Emergency Wattage
1.2 W
Housing Material
Plastic
Voltage
120 to 277V AC
Self Diagnostics
Yes
Remote Capable
No
Lamp Head Location
Side
Current
0.03 A, 0.05 A
Series
LHQM
Includes
(2) Directional Chevrons, (2) Exit Face Plates, Gren Color Plate, Mounting Canopy, Red Color Plate
Number of Faces
2
Text Color
Green/Red
Emergency Illumination Time
90 min
Lamp Head Shape
Round
Environmental Rating
Damp Location Rated
Item
Exit Sign
Number of Lamp Heads
2
Lamp Wattage
1.2 W
Compliance Type
None
Diagnostic Testing Function
Self Diagnostics/Remote Test
Battery Voltage
7.2 V

Description

Exit Sign,White Housing,Ceiling/Wall

Restrictions

Hazardous material
