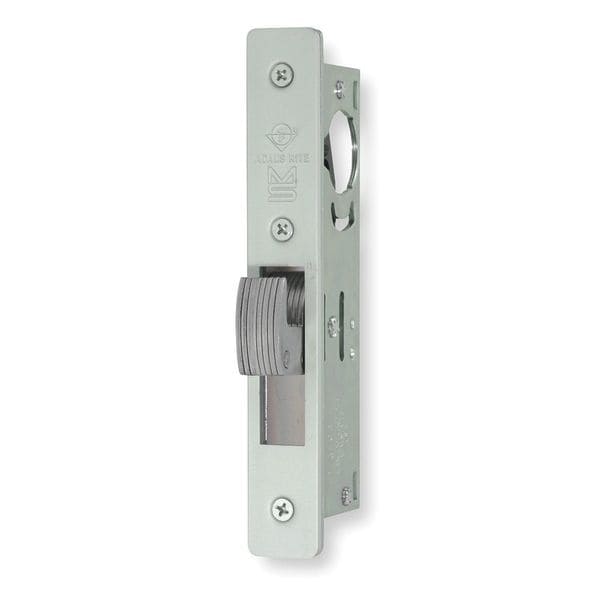

Adams Rite Deadbolt, Med.Duty, Aluminum MS1850S-350-628 - main

Deadbolt, Med.Duty, Aluminum

  • Mfr # MS1850S-350-628

  • Zoro # G3390746

product price:  $52.19
/ea

Key Features

Mortise / Cylindrical
Mortise
Location Type
Commercial
Lockset Grade
2
Series
QDB2
For Door Thickness
1-3/8 in to 1-3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MS1850S-350-628
Zoro #
G3390746
UPC #
-
Country of Origin
China

Dimensions

For Door Thickness
1-3/8 in to 1-3/4 in
Throw Length
1 3/8 in
Faceplate Dimensions
1 in x 2-1/4 in
Front Size Dimension
1" x 2-1/4"
Faceplate Width
1 in
Strike Plate Width
1 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
1 3/8 in
Faceplate Height
6 7/8 in
Strike Plate Height
2 1/4 in

Details

Mortise / Cylindrical
Mortise
Location Type
Commercial
Lockset Grade
2
Series
QDB2
Lockset Finish
Satin Aluminum
Keyway Type
Kwikset KW1
Key Type
Not Keyed
Standards
ANSI A156.5
ADA Compliant
No
For Use With
Standard 1 5/32 in Dia Mortise Cylinder with an MS Cam
Backset
1 1/8 in
Mortise/Cylindrical
Cylindrical
Security Type
Medium-Duty
Lockset Fire Rating
Not Rated
Strike Dim.
1 in x 2-1/4 in
Cylinder
Single
Ligature Resistant
No
Material
Bronze
Item
Deadbolt Lock
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare
Grade
2
Hand
Nonhanded
Includes
Faceplate, Strike Plate
Type
Hook Bolt
Application
Commercial, Industrial, Institutional
Locking/Unlocking Access - Outside
Coreless
ANSI Grade
2
ANSI/BHMA Finish
Satin Aluminum, Clear Anodized
Ligature-Resistant
Not Ligature-Resistant
Includes Core
Core Not Included
Includes Hardware
Hardware Included
Locking/Unlocking Access - Inside
Coreless

Description

Deadbolt Lock, Mortise, Commercial, Lockset Grade 2, Series QDB2, Lockset Finish Satin Aluminum, Keyway Type Kwikset KW1, Key Type Not Keyed, Standards ANSI A156.5, ADA Compliant No, Lockset Fire Rating Not Rated, Backset 1 1/8 in, Ligature Resistant No, Cylinder Single, Faceplate Dimensions 1 in x 2-1/4 in, For Door Thickness 1 3/8 in to 1 3/4 in, For Use With Standard 1 5/32 in Dia Mortise Cylinder with an MS Cam, Includes Faceplate, Strike Plate, Material Bronze, Security Type Medium-Duty
