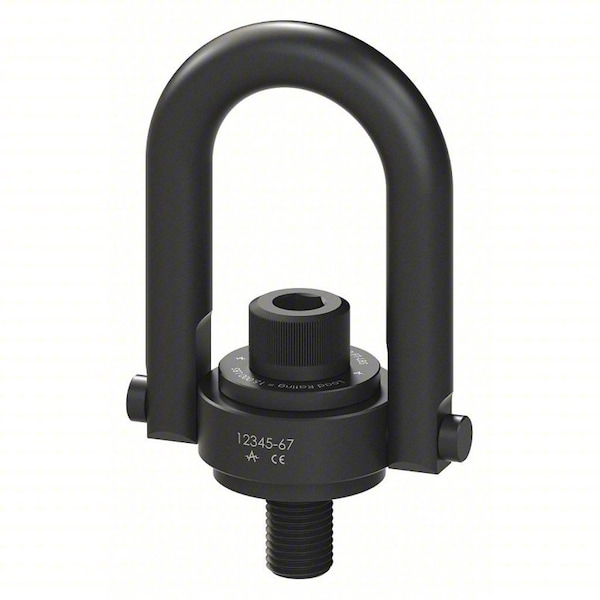

Hoist Ring, M64-6.00 Thread, 48,500 lb
Mfr # 24060
Zoro # G213209372
product price:Â $1,463.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Bolt-on
Series
SEHRM
Pivot
180 Degrees
Swivel Angle
360 Degrees
Working Load Limit
48,500 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24060
- Zoro #
- G213209372
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Bail Dia.
- 1 in
- Thread Size
- M64-6.00
- Overall Width
- 4 3/8 in
- Bail Inside Width
- 5 3/4 in
- Dimension a
- 76.2 mm
- Bail Inside Length
- 8 in
- Bail Thickness
- 2 1/4 in
- Dimension C
- 104 mm
- Dimension E
- 102 mm
- Dimension d
- 57.2 mm
- Usable Thread Length
- 4 in
- Dimension F
- 428.5 mm
- Dimension B
- 266.7 mm
- Overall Length
- 11 5/8 in
- Wire Rope Length
- 11 5/8 in
Description
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 48,500 lb, Thread Size M64-6.00, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 4 in, Bail Inside Length 8 in, Bail Inside Width 5 3/4 in, Bail Thickness 2 1/4 in, Overall Length 11 5/8 in, Overall Width 4 3/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 2,100.2 ft-lb, Finish Black Oxide
