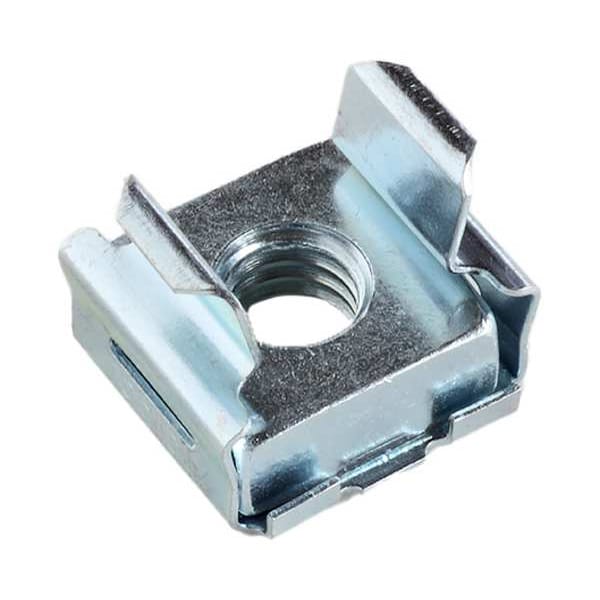

Cage Nut, 1/4"-20, Square Shape, Steel, Zinc Plated Finish

  • Mfr # ADVD31365-1420-3B

  • Zoro # G805724177

product price:  $8.29
/ea

Key Features

Thread Size
1/4"-20
Nut Shape
Square
Minimum Panel Thickness
0.125 in
Maximum Panel Thickness
0.156 in
Nut Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ADVD31365-1420-3B
Zoro #
G805724177
UPC #
-
Country of Origin
Italy

Dimensions

Thread Size
1/4"-20
Minimum Panel Thickness
0.125 in
Maximum Panel Thickness
0.156 in
Overall Length
0.53 in
Overall Width
7/16 in
For Hole Diameter
0.25 in
Maximum Square Hole Size
0.38 in
Hex Width
7/16 in
Minimum Square Hole Size
0.375 in
Square Hole Size - Maximum
0.38 in
Panel Thickness - Minimum
0.13 in
Square Hole Size -Minimum
0.38 in
Panel Thickness - Maximum
0.16 in
Wire Rope Length
0.53 in

Details

Item
Cage Nut
Nut Shape
Square
Nut Material
Steel
Nut Finish
Zinc Plated
Standards
ASME B18.18-2017
System of Measurement
Inch
Material Quality Standards
ASTM A684
Enclosure Type
Enclosed Nut
Thread Direction
Right Hand
Lock Type
Non-Locking
Thread Fit
2B
Thread Type
Coarse
RoHS Compliant
Yes
Removable
Yes
Manufacturer Location
Made in USA
Pack Size
Small Pack
For Use in Systems
Rack-Mounted Electronic Equipment
Made in North America
Yes
Dimensional Standards
ASME B18.18-2017
Resistance Properties
PARTS ARE ZINC-ELECTROPLATED 0.0002 THICK AND BAKED TO REDUCE HYDROGEN EMBRITTLEMENT. TRIVALENT CHROMATE IS APPLIED AS A SEALER. SILVER, EXCELLENT ELECTRICAL CONDUCTIVITY AND MODERATE CORROSION RESISTANCE, 5% SOLUTION AT 95 DEGREES F. END POINT (RED RUST) AFTER 72 HOURS.
Tensile Strength
82,400 psi
Cage Finish
Zinc Electroplate
REACH Compliant
Yes
Cage Material
Steel
Clip-On Style
Square
Color
Silver

Description

Cage Nut, Minimum Panel Thickness 0.125 in, Maximum Panel Thickness 0.156 in, Overall Width 0.54 in, Overall Length 0.53 in, System of Measurement Inch, Clip-On Style Square, Color Silver, Enclosure Type Enclosed Nut, For Hole Diameter 0.25 in, For Use in Systems Rack-Mounted Electronic Equipment, Hex Width 7/16 in, Lock Type Non-Locking, Made in North America Yes, Manufacturer Location Made in USA, Material Quality Standards ASTM A684, Maximum Square Hole Size 0.38 in
