6 Pad Heavy Duty Race Sprung

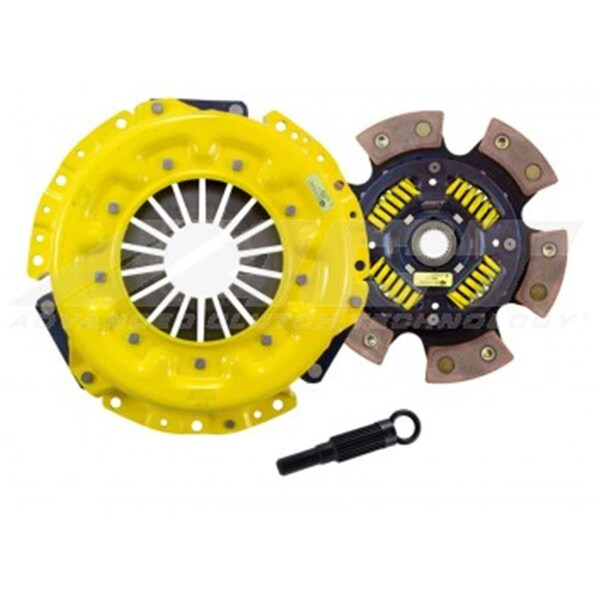

This item kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load reduce deflection and maximize clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support reduce stress concentrations and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Disc Type: -Race Disc -Engagement: -Light to moderate pedal effort aggressive engagement OE to mild gear rattle -Recommended for high horsepower street or race use Specifications - Spline Count: 24 - Spline Size Inch : 1 - Disk Diameter Inch : 9.4 - Torque Capacity Feet/lbs : 525 - Torque Capacity Over OE: 86% - Pressure Plate Type: Heavy Duty - Kit Contents: 6240306 AT01 N013 - Weight : 19.1 lbs
