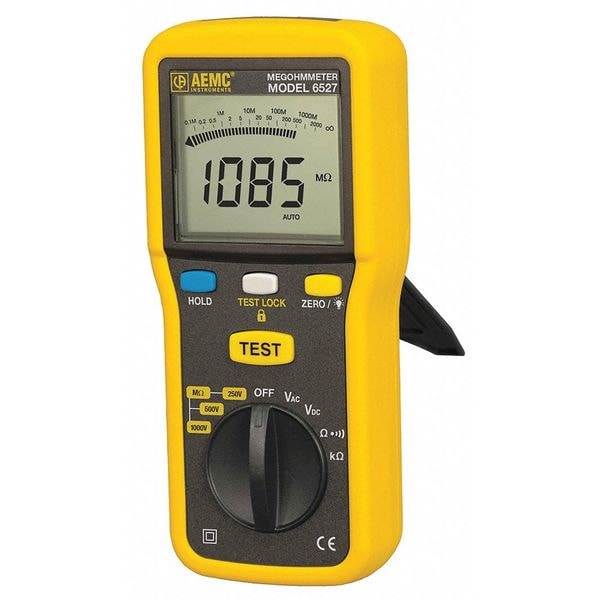

Aemc Instruments Battery Operated Megohmmeter 6527 - main

Battery Operated Megohmmeter

  • Mfr # 6527

  • Zoro # G6312560

product price:  $298.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Test Probe (Black), (2) Sets of 5 ft Color-Coded Test Leads with Alligator Clips (Red/Black), Soft Carrying Case
Insulation Resistance Range
1 kiloohm to 4 gigohm
Features
Continuity Buzzer
Manufacturers Warranty Length
2 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6527
Zoro #
G6312560
UPC #
685338150230
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr
Battery Size
AA
Tool Height
2 in
Tool Length
7.9 in
Tool Width
3.6 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
Test Probe (Black), (2) Sets of 5 ft Color-Coded Test Leads with Alligator Clips (Red/Black), Soft Carrying Case
Insulation Resistance Range
1 kiloohm to 4 gigohm
Features
Continuity Buzzer
Accuracy
+/-2%
Safety Rating
CAT IV 600V Pol 2, EN-61010-1
Auto Power Off
Yes
Auto Ranging
Yes
Output Test Voltage
250/500/1000V DC
Data Logging
No
Resistance Range
0 to 400 kilohm
Live Circuit Detection
0 to 1000V AC/V DC
Capacitance Range
No
Display
Backlit LCD with Bar Graph
Insulation Resistance Resolution
4 gigaohm
Battery Chemistry
Alkaline
Maximum AC Voltage Measured
600 V
Display Screen Type
LCD with Backlight
Input Impedance
10 megaohm
Number of Batteries Required
6
Minimum Insulation Resistance
1 kiloohm
Backlit Digital Display
Yes
Testing Functions
Insulation Resistance
Test Voltage
1,000V DC, 250V DC, 500V DC
Includes Batteries
Yes
Parameters Measured
Resistance
Maximum Insulation Resistance
4 gigohm
IP Rating
IP51
Standards
CE, EN 61010-1
Display Type
Digital
Maximum Operating Temperature
90 Degrees F
CAT Safety Rating
CAT IV 600V
Dustproof
Yes
Bluetooth Compatible
No
Test Current
200 mA
Data Logger
No
Operating Voltage
600V AC
Resistance Accuracy
+/-1.20% +3 digits
PI/DAR Testing
Yes
Minimum Operating Temperature
32 Degrees F
Includes Software
No
Capacitance Auto Discharge
Yes
Maximum DC Voltage Measured
1,000 V
Maximum Operating Temperature
90 Degrees F
Minimum AC Voltage Measured
1 V
Greater Than 30V Warning
No
Timed Ramp Voltage Test
No
USB Data Download Included
No
Minimum DC Voltage Measured
1 V
Calibration Certificate Included
No Certification Included
Live Circuit Voltage Measurement - Minimum
1 V
Pass/Fail Selection Limits
No
Remote Test Probe Included
No
Alert Type
Digital Display, Audible
Live Circuit Voltage Measurement - Maximum
1,000 V AC/DC
Waterproof
No
Data Output Type
No Output
Insulation Limit Alarm
No
Instrument Style
Handheld

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning No, Includes Test Probe (Black), (2) Sets of 5 ft Color-Coded Test Leads with Alligator Clips (Red/Black), Soft Carrying Case, Insulation Limit Alarm No, Maximum Insulation Resistance 4 gigohm, Minimum Insulation Resistance 1 kiloohm, PI/DAR Testing Yes, Parameters Measured Insulation Resistance
