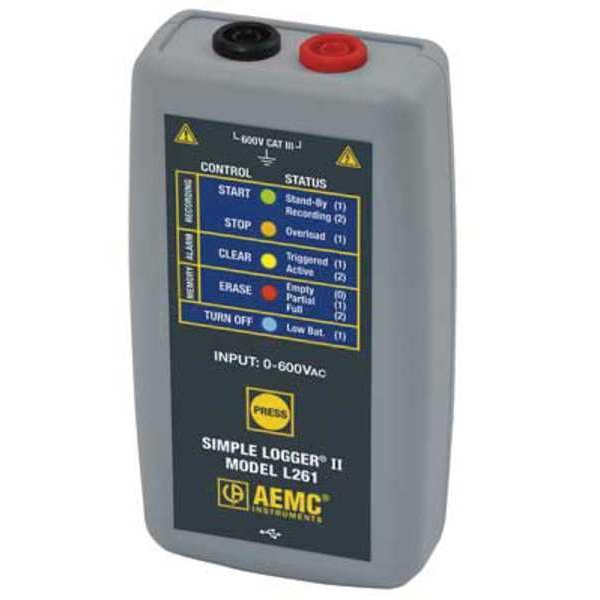

Aemc Instruments Voltage Data Logger, 0 to 600VAC/DC L261 - main

Voltage Data Logger, 0 to 600VAC/DC

  • Mfr # L261

  • Zoro # G2542723

product price: $620.99
/ea
Free Shipping & Returns

Key Features

Voltage Range
0 to 600 AC/DC
Voltage Accuracy
+/-0.5%
Voltage Channels
1
True RMS
Yes
Phase
single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L261
Zoro #
G2542723
UPC #
685338140361
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA
Manufacturer Warranty Length
2 yr
Overall Width
2 3/4 in
Overall Depth
1 5/16 in
Overall Height
5 in

Details

Item
Voltage Data Logger
Voltage Range
0 to 600 AC/DC
Voltage Accuracy
+/-0.5%
Voltage Channels
1
True RMS
Yes
Phase
single
Voltage Logging
Yes
Power Source
Battery
Special Features
Real Time Wave Form Viewing When Connected to a Computer
Sampling Rate
Programmable From 1/8 sec to 1 per 12 hr
Storage
240,000 Readings
Voltage Event Logging
Yes
Safety Rating
CAT III 600V, CAT IV 300V
Min. Transient Duration
0.259 uS
Protection Rating
IP40
Recording Capacity
Up To 8 weeks
Includes
Set of Color Coded Leads and Alligator Clips (Red/Black), USB Cable, USB Memory Stick
Interface
USB
Maximum Sampling Rate
64 sec
Number of Batteries Required
2
Minimum Operating Temperature Degrees F
14 Degrees F
DC Voltage Accuracy
+/-0.5%
CAT Safety Rating
CAT III 600V
Maximum Operating Temperature Degrees F
122 Degrees F
Maximum DC Voltage Measured
600 V DC
Number of Records Stored
240,000
Software Options
Software Included
Minimum DC Voltage Measured
5 V DC
Battery Chemistry
Alkaline
For Phase
Single
Batteries Included
Yes
Maximum AC Voltage Measured
600 V AC
Number of Voltage Channels
1
Parameters Measured
AC Voltage, DC Voltage
Minimum AC Voltage Measured
5 V AC
Battery Voltage
1.5V
Alert Type
Light
Features
(5) LED Indicators Quickly and Clearly Display Logger Status, AC: 64 Samples per Cycle and DC: 8 Samples per Second, Optically Isolated USB 2.0 Communication Cable Included, Programmable Storage Rates from 8 every Second to 1 every Day, Selectable Storage Modes, Stores up to 240,000 Measurements in Non-Volatile Memory
AC Voltage Accuracy
+/-0.5%

Description

Voltage Data Logger, AC Voltage Accuracy +/-0.5 Percent, Alert Type Light, Current Channels Not Applicable, For Phase Single, Maximum AC Current Measurement Not Applicable, Maximum AC Voltage Measured 600 V AC, Minimum Operating Temperature Degrees F 14 Degrees F, Maximum Operating Temperature Degrees F 122 Degrees F, Minimum AC Current Measurement Not Applicable, Maximum Sampling Rate 64 sec, Minimum AC Voltage Measured 5 V AC, Number of Records Stored 240,000
