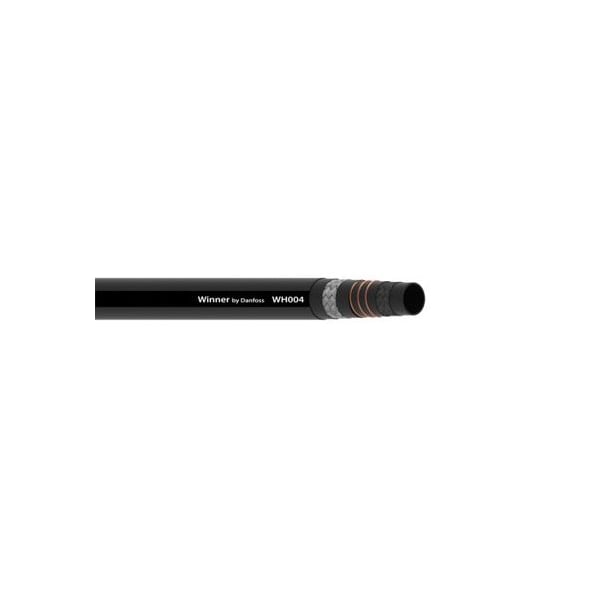

Hydraulic hose assy, SAE 100R4
Mfr # WH004-12-12FJ-12FJ-24"
Zoro # G212217545
product price:Â
$
63.39
/ea
Key Features
Max. Working Pressure @ 70 F
305 psi
Hose Inside Dia.
3/4 in
Hose Length
2 ft
Fitting Size
3/4 in x 3/4 in
Fitting Material
Carbon Steel x Carbon Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- WH004-12-12FJ-12FJ-24"
- Zoro #
- G212217545
- UPC #
- -
- Country of Origin
- United States
- Max. Working Pressure @ 70 F
- 305 psi
- Fitting Material
- Carbon Steel x Carbon Steel
- Hose Color
- Black
- Temp. Range
- -40 Degrees to 212 Degrees F
- Standards
- MSHA Approved, SAE 100R4
- Hose Fitting A Type
- FJIC
- Hose Fitting B Type
- FJIC
- Hose Configuration
- Coupled Assembly
- Safety Factor
- 4:1
- Item
- Wire Braided Hydraulic Hose Assembly
- Hose Fitting B Material
- Carbon Steel
- Hose Fitting A Material
- Carbon Steel
- Hose Tube Material
- Synthetic Rubber
- For Media Type
- Hydraulic Fluids
- Hose Braid Layers
- 1
- Hose Cover Material
- Synthetic Rubber
- Hose Reinforcement Material
- Synthetic Fiber
- Minimum Operating Temperature
- -40 Degrees F
Description
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 3/16 in, Hose Length 2 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Synthetic Fiber, Hose Braid Layers 1, Hose Color Black, Max. Working Pressure @ 70 F 305 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards MSHA Approved, SAE 100R4, Bend Radius 1 9/16 in, Hose Configuration Coupled Assembly
