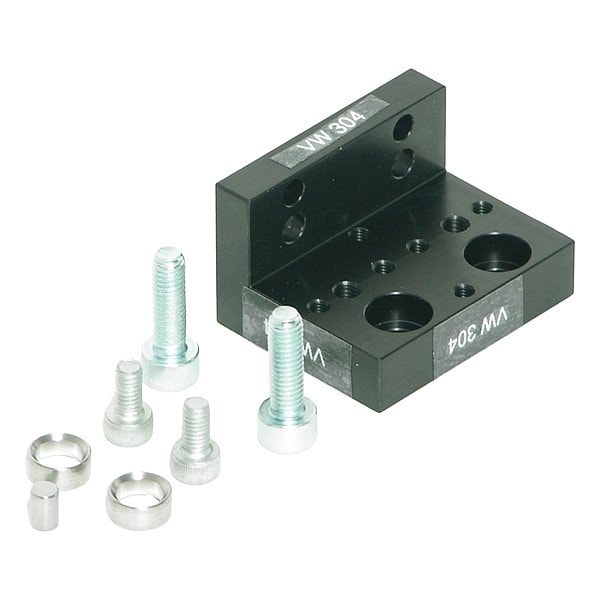

Angle Plate, 38 imm W
Mfr # 50205299
Zoro # G316017119
product price: $608.99
/ea
Free Shipping & Returns
Key Features
Overall Length
97 mm
Mount Hole Size
M4
Number of Mount Holes
12
Mounting Screw Thread Sizes
M4 x 14, M4 x 20
Product Type
Angle Plate
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50205299
- Zoro #
- G316017119
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 97 mm
- Mount Hole Size
- M4
- Mounting Screw Thread Sizes
- M4 x 14, M4 x 20
- Mount Hole Center-to-Center Width
- 30 mm
- Overall Width
- 38 mm
- Overall Height
- 90 mm
- Mount Hole Center-to-Center Length
- 30 mm
- Center Bushing Sizes
- Ø7x3
Details
- Item
- Angle Plate
- Number of Mount Holes
- 12
- Product Type
- Angle Plate
- Weight
- 0.35 kg
- Number of Mounting Screws Included
- 12
- Mounting Type
- Plate
- Number of Center Bushings Included
- 4
Description
AFAG - 50205299 is an angle plate for mounting pneumatic components such as valves, cylinders, regulators, or FRLs. It allows mounting at a 90-degree angle. Mounting type: Plate; mounting using provided screws (M4 x 14 mm and M4 x 20 mm) included. Key Features:
- Center bushing size: Ø7x3 mm, with four center bushings included.
- Mount hole configuration: 12 holes total, with a center-to-center spacing of 30 mm by 30 mm.
- Mount hole size: M4, with mounting screws sized M4 x 14 mm and M4 x 20 mm included (12 screws total).
- Overall dimensions: 97 mm length, 38 mm width, and 90 mm height.
- Weight: 0.35 kg.
- Mounting type: Plate.
