Grainger Product
Mfr # 50425969
Zoro # G616017499
product price:Â
$
4,075.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Voltage
72V DC
Maximum Stroke
50 mm
Moving Weight
0.5 kg
Repeatability
+/-0.05 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50425969
- Zoro #
- G616017499
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Attachment Grid Size
- 30 mm x 30 mm
- Attachment Thread Size
- M3, M4
Details
- Item
- Linear Module
- System of Measurement
- Metric
- Voltage
- 72V DC
- Maximum Stroke
- 50 mm
- Moving Weight
- 0.5 kg
- Repeatability
- +/-0.05 mm
- Minimum Operating Temperature
- 0 Degrees C
- Peak Force
- 67 N
- Maximum Operating Temperature
- 50 Degrees C
Description

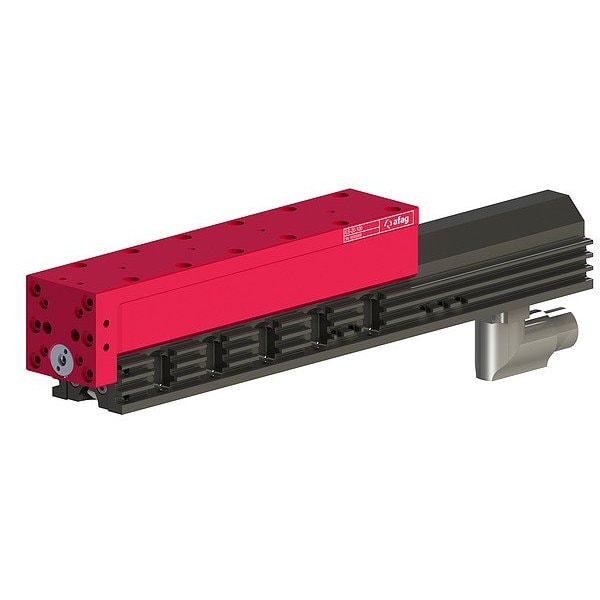

The AFAG - 50425969 is a pneumatic linear module with a maximum stroke of 50 mm and a repeatability of +/-0.05 mm. It integrates a guided slide with a pneumatic actuator to deliver a repeatability of +/-0.05 mm over a 50 mm stroke. The module supports load handling in automated systems, enabling constrained straight-line movement with a peak force output of 67 N. It operates within a temperature range from 0 Degrees C to 50 Degrees C and adheres to the metric system for its dimensions and fittings. Key Features:
- Attachment grid size: 30 mm x 30 mm for mounting compatibility.
- Attachment thread sizes: M3 and M4 for threaded connections.
- Moving weight: 0.5 kg representing the combined weight of moving parts.
- Repeatability: +/-0.05 mm indicating positional accuracy.
- Maximum operating temperature: 50 Degrees C and minimum operating temperature: 0 Degrees C.
- System of measurement: Metric standards used for dimensions and fittings.
