Grainger Product
Mfr # 50425971
Zoro # G016017587
product price:
$
4,896.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Temperature
50 Degrees C
Moving Weight
1.1 kg
Maximum Stroke
200 mm
Attachment Grid Size
30 mm x 30 mm
Voltage
72V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50425971
- Zoro #
- G016017587
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Attachment Grid Size
- 30 mm x 30 mm
- Attachment Thread Size
- M3, M4
Details
- Item
- Linear Module
- Maximum Operating Temperature
- 50 Degrees C
- Moving Weight
- 1.1 kg
- Maximum Stroke
- 200 mm
- Voltage
- 72V DC
- System of Measurement
- Metric
- Repeatability
- +/-0.05 mm
- Minimum Operating Temperature
- 0 Degrees C
- Peak Force
- 137 N
Description

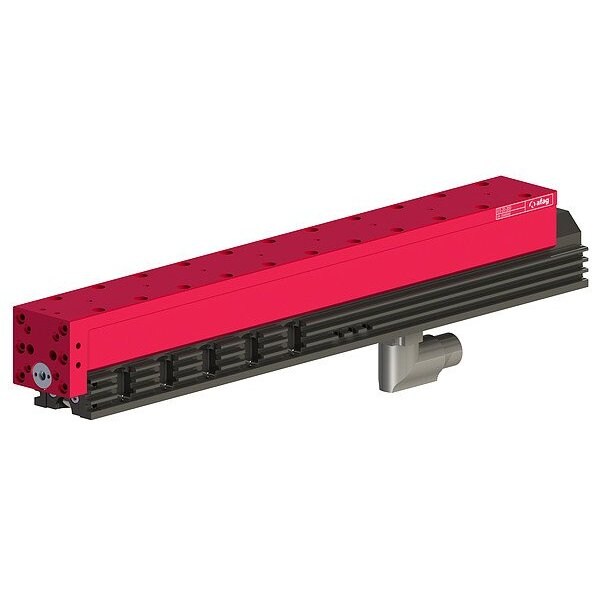

The AFAG - 50425971 is a pneumatic linear module that provides straight-line motion within defined travel, load, and temperature limits using an integrated guided slide and pneumatic actuator (stroke 200 mm, peak force 137 N, temperature 0–50 °C). Repeatability: ±0.05 mm; peak force up to 137 N. It is constructed with a metric system of measurement and mounts using an attachment grid of 30 mm x 30 mm, with attachment thread sizes of M3 and M4.
Key Features:- Maximum stroke length: 200 mm
- Peak force capacity: 137 N
- Repeatability: ±0.05 mm
- Moving weight: 1.1 kg
- Attachment grid: 30 mm x 30 mm
- Threaded attachment points: M3 and M4
- Temperature range: 0–50 °C
- Measurement standard: metric
