Grainger Product
Mfr # 50425973
Zoro # G516017636
product price: $4,920.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Temperature
50 Degrees C
Attachment Thread Size
M6
Maximum Stroke
50 mm
Peak Force
255 N
Voltage
72V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50425973
- Zoro #
- G516017636
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Attachment Thread Size
- M6
- Attachment Grid Size
- 48 mm x 48 mm
Details
- Item
- Linear Module
- Maximum Operating Temperature
- 50 Degrees C
- Maximum Stroke
- 50 mm
- Peak Force
- 255 N
- Voltage
- 72V DC
- Moving Weight
- 1.3 kg
- System of Measurement
- Metric
- Minimum Operating Temperature
- 0 Degrees C
- Repeatability
- +/-0.05 mm
Description

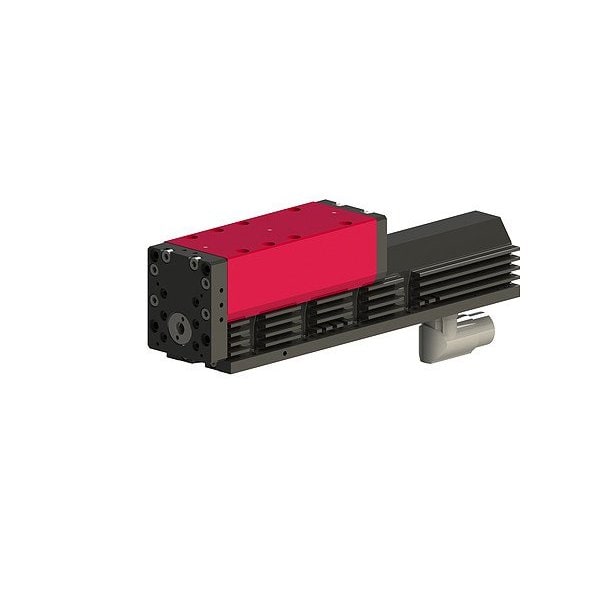

The AFAG - 50425973 is a pneumatic linear module that provides linear motion with a position repeatability of ±0.05 mm by integrating a guided rail and carriage with a pneumatic actuator. Supports repeatable positioning and constrained straight-line movement within a 50 mm stroke. It operates within a temperature range of 0 to 50 Degrees C and offers a maximum stroke length of 50 mm. Stroke length: 50 mm.
Key Features:
- Maximum stroke: 50 mm for linear travel distance.
- Peak force: 255 N indicating maximum instantaneous linear force.
- Repeatability: ±0.05 mm for consistent positioning accuracy.
- Moving weight: 1.3 kg representing the weight of internal moving components.
- Attachment grid size: 48 mm x 48 mm denoting mounting hole spacing.
- Attachment thread size: M6 for threaded connection points.
- System of measurement: Metric.
- Electrical input voltage: 72 V DC.
