Grainger Product
Mfr # 50425974
Zoro # G416017750
product price: $5,192.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Moving Weight
1.6 kg
Minimum Operating Temperature
0 Degrees C
Maximum Stroke
100 mm
Voltage
72V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50425974
- Zoro #
- G416017750
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Attachment Grid Size
- 48 mm x 48 mm
- Attachment Thread Size
- M6
Details
- Item
- Linear Module
- System of Measurement
- Metric
- Moving Weight
- 1.6 kg
- Minimum Operating Temperature
- 0 Degrees C
- Maximum Stroke
- 100 mm
- Voltage
- 72V DC
- Maximum Operating Temperature
- 50 Degrees C
- Repeatability
- +/-0.05 mm
- Peak Force
- 255 N
Description

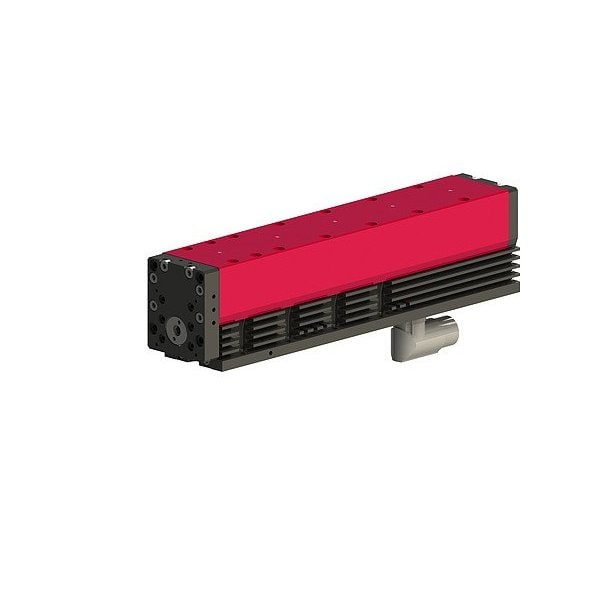

The AFAG - 50425974 is a pneumatic linear module designed to provide guided linear motion powered by pneumatic actuation. It delivers precise, repeatable straight-line movement with a maximum stroke of 100 mm and a peak force output of 255 N. The system operates within a temperature range of 0 Degrees C to 50 Degrees C, and its moving components weigh 1.6 kg. The module uses metric measurements and includes threaded attachment points sized M6, with an attachment grid spacing of 48 mm by 48 mm.
Key Features:
- Maximum stroke of 100 mm for linear travel.
- Peak force capacity of 255 N for actuation.
- Repeatability tolerance of ±0.05 mm for consistent positioning.
- Moving weight of 1.6 kg representing the mass of movable components.
- Operating temperature range from 0 Degrees C to 50 Degrees C.
- Attachment grid size spaced at 48 mm x 48 mm for mounting.
- Thread size M6 for attachment points.
- Operates on 72V DC electrical input.
