Shop AFAG

Grainger Product

  • Mfr # 50425977

  • Zoro # G216017684

product price:
$
5,795.74
/ea
Free Shipping & Returns

Key Features

Maximum Stroke
200 mm
Minimum Operating Temperature
0 Degrees C
Attachment Grid Size
48 mm x 48 mm
Voltage
72V DC
Maximum Operating Temperature
50 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
50425977
Zoro #
G216017684
UPC #
-
Country of Origin
Korea, Republic of
Item
Linear Module
Maximum Stroke
200 mm
Minimum Operating Temperature
0 Degrees C
Voltage
72V DC
Maximum Operating Temperature
50 Degrees C
Peak Force
255 N
Repeatability
+/-0.05 mm
System of Measurement
Metric
Moving Weight
2.6 kg

Description

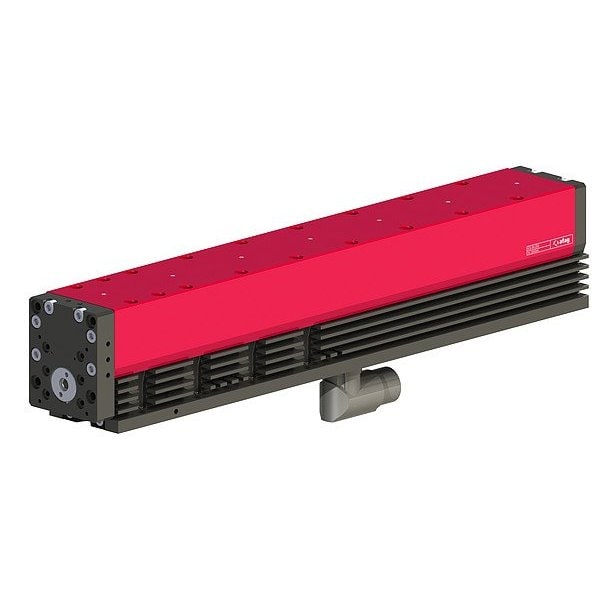

The AFAG - 50425977 is a pneumatic linear module enabling straight-line motion with a repeatability of +/-0.05 mm through an integrated guided slide and pneumatic actuator. It supports payloads up to 255 N within the specified operating range, offers a stroke length of 200 mm, and has a moving weight of 2.6 kg. Operating temperature range: 0 Degrees C to 50 Degrees C.

Key Features:

  • Attachment grid size of 48 mm x 48 mm for mounting compatibility.
  • Attachment thread size: M6 for secure connections.
  • Operates on a metric system of measurement.
  • Designed for a maximum operating temperature of 50 Degrees C and a minimum of 0 Degrees C.
  • Stroke length: 200 mm.
  • Peak force: 255 N to support load movement.
  • Moving weight: 2.6 kg.
  • Repeatability: +/-0.05 mm for consistent positioning performance.
  • Electrical rating: 72 V DC.
