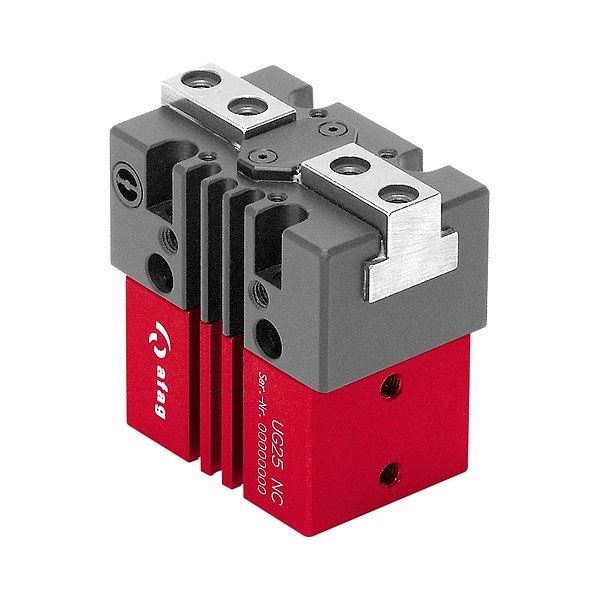

Gripper, 59 mm L, 4 bar
Mfr # 50030771
Zoro # G116277690
product price:
$
561.99
/ea
Free Shipping & Returns
Key Features
Open Width
12 mm
Standards
ISO 14644-1, ISO 7
Overall Width
30 mm
Maximum Actuation Time
0.2 sec
Repeatability
+/-0.02 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50030771
- Zoro #
- G116277690
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Open Width
- 12 mm
- Overall Width
- 30 mm
- Bore Diameter
- 25 mm
- Inlet Size
- M5
- Overall Height
- 49 mm
- Stroke Length
- 6 mm
- Overall Length
- 59 mm
- Wire Rope Length
- 59 mm
- Length
- 59 mm
Details
- Item
- Gripper
- Standards
- ISO 14644-1, ISO 7
- Maximum Actuation Time
- 0.2 sec
- Repeatability
- +/-0.02 mm
- Maximum Operating Temperature
- 122 Degrees F
- Includes
- (2) M4 x 35 Mounting Screw, (2) Ø7 x 3 Centering Bushing, (4) M4 x 55 Mounting Screw
- System of Measurement
- Metric
- Minimum Operating Pressure
- 4 bar
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Operating Pressure
- 8 bar
- Weight
- 0.38 kg
- Series
- UG
Description
Gripper, Series UG, Open Width 12 mm, Stroke Length 6 mm, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Overall Length 59 mm, Overall Width 30 mm, Overall Height 49 mm, Inlet Size M5, Includes (2) M4 x 35 Mounting Screw, (2) �7 x 3 Centering Bushing, (4) M4 x 55 Mounting Screw, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Standards ISO 14644-1, ISO 7, Weight 0.38 kg, System of Measurement Metric, Repeatability +/-0.02 mm
