Rotary Module, 4 bar

  • Mfr # 50254301
  • Zoro # G816017763
product price:
$
2,661.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) M10 x 70 Mounting Screws, (2) Ø19 x 5.8 Centering Bushings, (2) SD M20 x 1.5-1 Shock Absorbers
Minimum Operating Pressure
4 bar
Maximum Operating Temperature
50 Degrees C
Minimum Operating Temperature
32 Degrees F
Accuracy
+/- 0.05 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50254301
Zoro #
G816017763
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Secondary Attachment Grid Size
60 mm
Secondary Attachment Thread Size
M8
Primary Attachment Thread Size
M10 pass - M12 from below
Primary Attachment Grid Size
96 mm

Details

Item
Rotary Module
Includes
(2) M10 x 70 Mounting Screws, (2) Ø19 x 5.8 Centering Bushings, (2) SD M20 x 1.5-1 Shock Absorbers
Minimum Operating Pressure
4 bar
Maximum Operating Temperature
50 Degrees C
Minimum Operating Temperature
32 Degrees F
Accuracy
+/- 0.05 Degrees
Maximum Torque
13.5 N-m
Number of Positions
2
Angle of Rotation
180 Degrees
Maximum Pressure
8 bar

Description

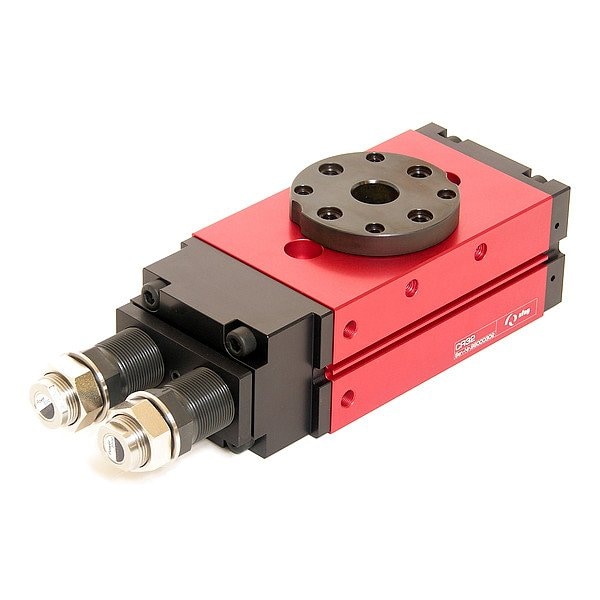

The AFAG - 50254301 is a pneumatic rotary module that converts compressed air power into controlled angular motion. Rotation angle: 180 degrees. Number of operating positions: 2. The module supports a maximum torque of 13.5 N-m and operates within a pressure range of 4 to 8 bar. It is designed for use in automation and motion control systems requiring precise rotary positioning with an accuracy of +/- 0.05 degrees (under specified operating conditions). The operating temperature range: 0 to 50 C (32 to 122 F).

Key Features:

  • Rotation angle: 180 degrees
  • Number of operating positions: 2
  • Accuracy: +/- 0.05 degrees (under specified operating conditions)
  • Torque capacity: Maximum 13.5 N-m
  • Operating pressure range: 4 bar minimum to 8 bar maximum
  • Operating temperature range: 0 to 50 C (32 to 122 F)
  • Mounting interface: 96 mm grid; M10 through M12 threaded holes from below
  • Secondary attachment grid size: 60 mm with M8 threaded attachment
  • Includes: (2) M10 x 70 mounting screws, (2) Ø19 x 5.8 centering bushings, (2) SD M20 x 1.5-1 shock absorbers
